W199AX-4 by schneider electric-legacy relays

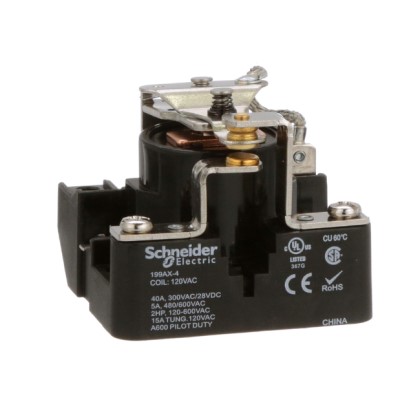

Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

W199AX-4

Electromechanical Relay 120VAC 290Ohm 40A SPDT (63.5x61.7x55.37)mm Power Relay ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The Magnecraft / Schneider Electric W199AX-4 is a high-quality electromechanical relay designed for various power control applications. With a voltage rating of 120VAC and a coil resistance of 290Ohm, this SPDT (Single Pole Double Throw) relay is highly reliable and can handle up to 40A of current. Its compact dimensions of 63.5x61.7x55.37mm make it easy to integrate into any system or circuit. Whether you need to control motors, heaters, or other power-consuming devices, this power relay ensures efficient and safe operation. Trust the Magnecraft / Schneider Electric W199AX-4 to provide superior performance and durability in your electrical applications.

Search Keywords: W199AX4

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
W199AX-4
Alias/AKA:
199AX-4
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
SPDT
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C
Life Cycle:
Discontinued & Replaced

FREQUENTLY ASKED QUESTIONS

Is W199AX-4 discontinued?

Yes, W199AX-4 from Schneider Electric-Legacy Relays is discontinued. Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

What replaces W199AX-4?

The recommended replacement for W199AX-4 is 199AX-4 from Schneider Electric-Legacy Relays, available from Master Electronics.

Is W199AX-4 RoHS compliant?

Yes, W199AX-4 is RoHS compliant.

What is the lead time for W199AX-4?

The standard lead time for W199AX-4 is approximately 12 weeks. In-stock quantities ship from Master Electronics.

  This product is discontinued, but still in stock

IN STOCK: 314

Can Ship immediately

Price (USD)

Qty
Unit Price
1
$77.40
5
$64.50
10
$58.23
25
$54.82
50
$50.18
100
$48.45
250 +
$46.26
Supplier's Standard Package
