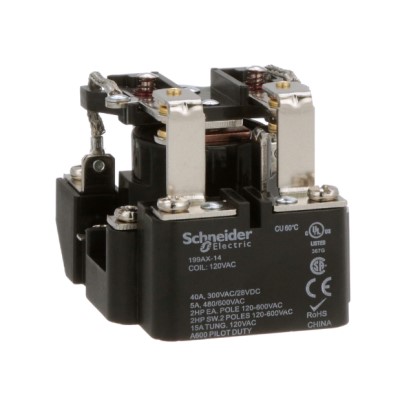

199AX-14
199AX-14
In Stock: 944
Minimum Order: 1
VIEW PRODUCT
W199AX-14 by schneider electric-legacy relays
Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

W199AX-14

Electromechanical Relay 120VAC 290Ohm 40A DPDT (63.5x79.2x58.67)mm Power Relay ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued
Certificate of Compliance

DESCRIPTION

The Magnecraft / Schneider Electric W199AX-14 is a high-quality electromechanical relay designed for reliable power switching applications. This relay operates on 120VAC and has a coil resistance of 290 Ohms, allowing it to handle heavy currents up to 40A. With its DPDT (Double Pole Double Throw) configuration, the W199AX-14 provides versatile and efficient power control. This compact relay measures 63.5x79.2x58.67mm, making it suitable for various industrial and commercial installations. Trust in the superior performance and durability of this Magnecraft / Schneider Electric power relay for your electrical applications.

Search Keywords: W199AX14

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
W199AX-14
Alias/AKA:
199AX-14
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPDT
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C
Life Cycle:
Discontinued

FREQUENTLY ASKED QUESTIONS

Is W199AX-14 discontinued?

Yes, W199AX-14 from Schneider Electric-Legacy Relays is discontinued (end-of-life March 2026). Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

What replaces W199AX-14?

The recommended replacement for W199AX-14 is 199AX-14 from Schneider Electric-Legacy Relays, available from Master Electronics.

Is W199AX-14 RoHS compliant?

Yes, W199AX-14 is RoHS compliant.

What is the lead time for W199AX-14?

The standard lead time for W199AX-14 is approximately 12 days. In-stock quantities ship from Master Electronics.

  This product is discontinued, but still in stock

IN STOCK: 944

Can Ship immediately

Price (USD)

Qty
Unit Price
1
$74.32
5
$73.59
10
$70.78
25
$68.96
50
$66.71
100
$62.31
250 +
$60.15
Supplier's Standard Package
