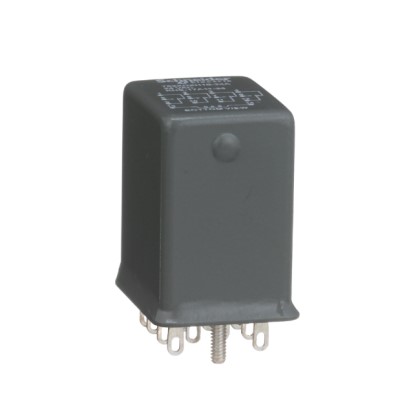

782XDXH10-24D by schneider electric-legacy relays
Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

782XDXH10-24D

Hermetically sealed plug-in relays - SE Relays - 3A - 4 CO - 24VDC ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The Magnecraft / Schneider Electric 782XDXH10-24D is a high-quality electromechanical relay with a 24VDC coil voltage. This relay has a low resistance of 650Ohm, allowing for efficient and reliable operation. With its 4PDT (4 Form C) configuration, it provides versatile switching options for various applications. The relay is designed to handle a current rating of 3A, making it suitable for both low and moderate power circuits. Its plug-in control design allows for easy installation and replacement. Whether used in industrial automation, HVAC systems, or control panels, this relay offers exceptional performance, durability, and flexibility.

Search Keywords: 782XDXH1024D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
782XDXH10-24D
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
4PDT
Maximum Current Rating:
3 A
Mounting:
Connector
Termination Style:
Quick Connect
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
N/A
Coil Resistance:
650 Ohm

FREQUENTLY ASKED QUESTIONS

Is 782XDXH10-24D RoHS compliant?

Yes, 782XDXH10-24D is RoHS compliant.

What is the lead time for 782XDXH10-24D?

The standard lead time for 782XDXH10-24D is approximately 2 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 232

Can Ship immediately

On Order: 87   can ship 11/5/26

Factory Lead-Time 2 Weeks

Price (USD)

Qty
Unit Price
1
$209.73
5
$199.24
10
$189.28
25 +
$179.82
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

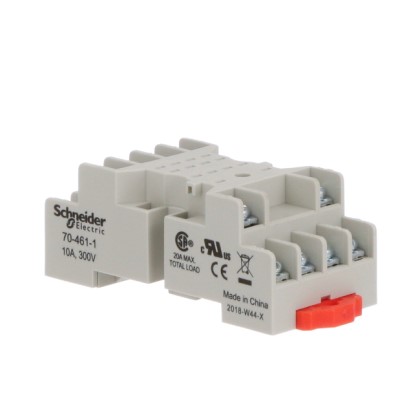

70-461-1

Socket - SE Relays - 10A - 14 pins - screw clamp terminals - mixed contact - for 782H / 79 ...

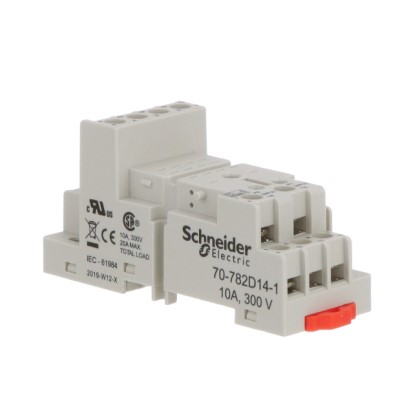

70-782D14-1

Socket - Harmony Electromechanical Relays - for 782 relays - 4PDT - 14 pins - screws clamp ...

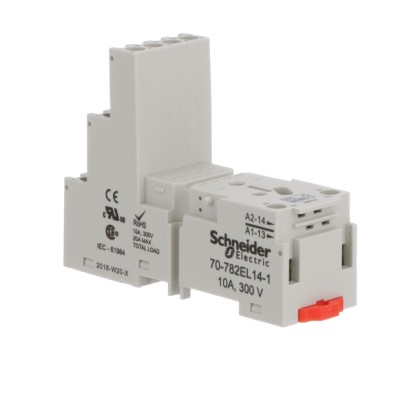

70-782EL14-1

Socket - SE Relays - 10A - 17 pins - screw connectors - separate contact - for 782 relays

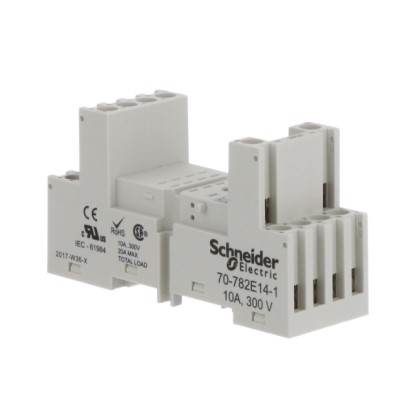

70-782E14-1

Socket - SE Relays - 10A - 17 pins - screw connectors - mixed contact - for 782 relays

Show 2 More
