782XDX3M4L-12D by schneider electric-legacy relays
Image is representational - see mfr. specs

782XDX3M4L-12D

Schneider Electric-Legacy Relays

Electromechanical Relay 12VDC 160Ohm 3A 4PDT (27.9x21)mm Socket Power Relay

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

Electromechanical Relay 12VDC 160Ohm 3A 4PDT (27.9x21)mm Socket Power Relay

Search Keywords: 782XDX3M4L12D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
782XDX3M4L-12D
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
4PDT
Maximum Current Rating:
3 A
Mounting:
Socket
Termination Style:
Solder
Push to Test Button:
Yes
Led Indicator:
Yes
Operating Temperature:
-40 to 55 °C
Coil Resistance:
160 Ohm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 6

Ships today, if you order in

Minimum Order Quantity: 3

Qty
Unit Price
3
$18.88
10
$13.20
25
$12.34
50
$11.95
75
$11.83
100 +
$11.35
Log in for special pricing Click for Quote Price Match Request
RECOMMENDED REPLACEMENT

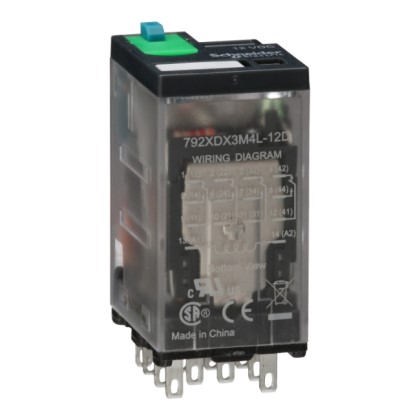

792XDX3M4L-12D
792XDX3M4L-12D
VIEW PRODUCT
