782XBXM4L-24D

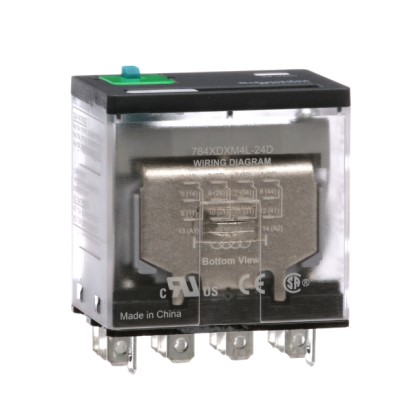

Power Relay - General Purpose Relays - DPDT - LED clear cover - lock push button - faston terminals - 15A - 24V DC - 2NO + 2NC ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued
Certificate of Compliance

DESCRIPTION

The Magnecraft / Schneider Electric 782XBXM4L-24D is a reliable and efficient Electromechanical Relay designed for various industrial applications. This high-quality relay operates at 24VDC and has a contact resistance of 650 Ohms. It features a Double Pole Double Throw (DPDT) configuration, providing versatile switching options. With a compact size of 27.9x21x46.5mm, this relay can be easily installed using the accompanying socket, saving valuable space in your electrical panel. The 782XBXM4L-24D relay is rated for a maximum current of 15A, making it suitable for handling demanding loads. Trust in the power and precision of this Magnecraft / Schneider Electric relay for your control and automation needs.

Search Keywords: 782XBXM4L24D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
782XBXM4L-24D
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
15 A
Mounting:
Socket
Termination Style:
0.187Quick Connect
Push to Test Button:
Yes
Led Indicator:
Yes
Operating Temperature:
-40 to 70 °C
Coil Resistance:
650 Ohm
Life Cycle:
Discontinued

FREQUENTLY ASKED QUESTIONS

Is 782XBXM4L-24D discontinued?

Yes, 782XBXM4L-24D from Schneider Electric-Legacy Relays is discontinued (end-of-life March 2026). Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

Is 782XBXM4L-24D RoHS compliant?

Yes, 782XBXM4L-24D is RoHS compliant.

What is the lead time for 782XBXM4L-24D?

The standard lead time for 782XBXM4L-24D is approximately 2 days. In-stock quantities ship from Master Electronics.

  This product is discontinued, but still in stock

IN STOCK: 1,070

Ships today, if you order in

Minimum Order Quantity: 10

Multiple: 10

Price (USD)

Qty
Unit Price
10
$25.54
30
$23.60
50
$22.86
100
$22.80
250
$22.74
500
$22.68
1,000 +
$22.63
Supplier's Standard Package
