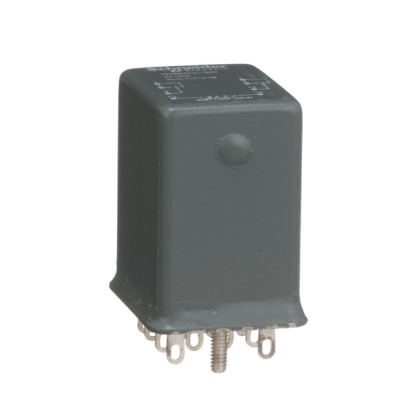

KHS-11D12-24
KHS-11D12-24
In Stock: 71
Minimum Order: 1
VIEW PRODUCT
782XBXH21-24D by schneider electric-legacy relays
Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

782XBXH21-24D

Hermetically sealed plug-in relays - SE Relays - 5A - 2 CO - 24VDC ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The Magnecraft / Schneider Electric 782XBXH21-24D is an electromechanical relay designed for various industrial applications. With a 24VDC operating voltage and a coil resistance of 650Ohm, this relay offers reliable performance for controlling electrical circuits. It features a 4PDT (4-pole double throw) configuration, allowing for versatile switching capabilities. The compact size of this relay (measuring 29.36x23.1mm) makes it suitable for use in tight spaces. With a maximum current rating of 5A, it can handle moderate to heavy loads. The included socket makes installation and replacement hassle-free. This ice cube relay is a cost-effective and dependable solution for your relay needs.

Search Keywords: 782XBXH2124D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
782XBXH21-24D
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
4PDT
Maximum Current Rating:
5 A
Mounting:
Socket
Termination Style:
Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 70 °C
Coil Resistance:
650 Ohm

FREQUENTLY ASKED QUESTIONS

What replaces 782XBXH21-24D?

The recommended replacement for 782XBXH21-24D is KHS-11D12-24 from Schneider Electric-Legacy Relays, available from Master Electronics.

Is 782XBXH21-24D RoHS compliant?

Yes, 782XBXH21-24D is RoHS compliant.

What is the lead time for 782XBXH21-24D?

The standard lead time for 782XBXH21-24D is approximately 34 days. In-stock quantities ship from Master Electronics.

IN STOCK: 71

Ships today, if you order in

Factory Lead-Time 34 Weeks

Price (USD)

Qty
Unit Price
1
$235.20
5
$223.44
10
$212.27
25
$201.66
50
$191.58
100 +
$182.00
