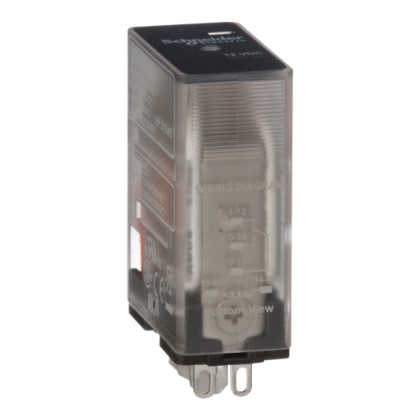

781XAXRC-12D by schneider electric-legacy relays

781XAXRC-12D

Schneider Electric-Legacy Relays

Power relay - SE Relays - 15A - SPDT - 12 VDC - clear cover ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MAGNECRAFT / SCHNEIDER ELECTRIC 781XAXRC-12D is an electromechanical relay with a 12VDC coil voltage, 188Ohm resistance, and 20A switching capacity. This SPDT (Single Pole Double Throw) relay is designed as an ice cube style relay with dimensions of 27.9x14x35.5mm, and it can be easily installed using a compatible socket. Perfect for a wide range of applications, this reliable relay offers high performance and durability.

Search Keywords: 781XAXRC12D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
781XAXRC-12D
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPDT
Maximum Current Rating:
20 A
Mounting:
Socket
Termination Style:
Quick Connect
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C

IN STOCK: 178

Can Ship immediately

Minimum Order: 10

Multiple: 10

Factory Lead-Time 9 Weeks

Qty
Unit Price
10
$15.18
30
$14.28
100
$13.30
250
$12.56
500
$12.00
1,000
$11.42
2,500
$10.78
5,000 +
$10.62
