750XBXH-120A by schneider electric-legacy relays

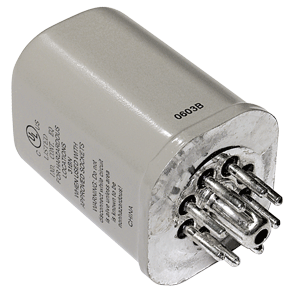

Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

750XBXH-120A

Relay - General Purpose Relays - DPDT - hermetically - hazardous location series - octal terminal 8 pins - 12A - 120V AC - 2NC + 2NO ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The Magnecraft / Schneider Electric 750XBXH-120A is a versatile and reliable electromechanical relay designed for general purpose applications. It operates on a voltage range of 110/120VAC and offers a high resistance of 9.1KOhm. With a double-pole, double-throw (DPDT) configuration, this relay is capable of handling a current of up to 12A. The compact dimensions of 38.6x34x52.07mm make it suitable for installation in tight spaces. Additionally, the relay comes with a socket for easy mounting and connection. With its high-quality construction and exceptional performance, the 750XBXH-120A is an ideal choice for various industrial and commercial applications.

Search Keywords: 750XBXH120A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
750XBXH-120A
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
110,120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPDT
Maximum Current Rating:
12 A
Mounting:
Socket
Termination Style:
8-Pin Circular Plug
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 55 °C
Coil Resistance:
9.1 KOhm

FREQUENTLY ASKED QUESTIONS

Is 750XBXH-120A RoHS compliant?

Yes, 750XBXH-120A is RoHS compliant.

What is the lead time for 750XBXH-120A?

The standard lead time for 750XBXH-120A is approximately 9 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 197

Can Ship immediately

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
1
$182.19
5
$173.08
10
$164.43
25 +
$156.21
Supplier's Standard Package
