199BX-14 by schneider electric-legacy relays

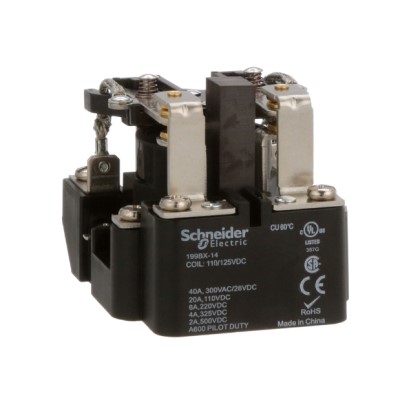

Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

199BX-14

Power relay - SE Relays - DPDT - 40A - 120 VDC - magnetic blowout - open type ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The Magnecraft / Schneider Electric 199BX-14 is a high-quality Electromechanical Relay designed for reliable and efficient power control applications. It operates with a voltage rating of 110VDC and has a resistance of 6KOhm, making it suitable for a wide range of industrial and commercial uses. This relay features a Double Pole Double Throw (DPDT) configuration, allowing for flexible switching options. With its compact dimensions of 63.5x79.2x64.26mm, it can easily be integrated into various systems and equipment. The 199BX-14 offers a heavy-duty 40A current rating, ensuring robust and dependable performance. Whether used in motor control, heating and ventilation systems, or other power distribution applications, this Magnecraft / Schneider Electric relay delivers exceptional reliability and durability.

Search Keywords: 199BX14

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
199BX-14
Alias/AKA:
W199BX-14
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
110 V
Contact Arrangement:
DPDT
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C

FREQUENTLY ASKED QUESTIONS

Is 199BX-14 RoHS compliant?

Yes, 199BX-14 is RoHS compliant.

What is the lead time for 199BX-14?

The standard lead time for 199BX-14 is approximately 14 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 14

Can Ship immediately

On Order: 164   can ship 12/4/26

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
1
$102.27
5
$85.22
10
$75.76
30
$73.37
50
$73.18
100
$73.00
250 +
$72.82
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

50-1289-1

Enclosure Metal Universal Mount
