TFM-110-02-L-DH by samtec

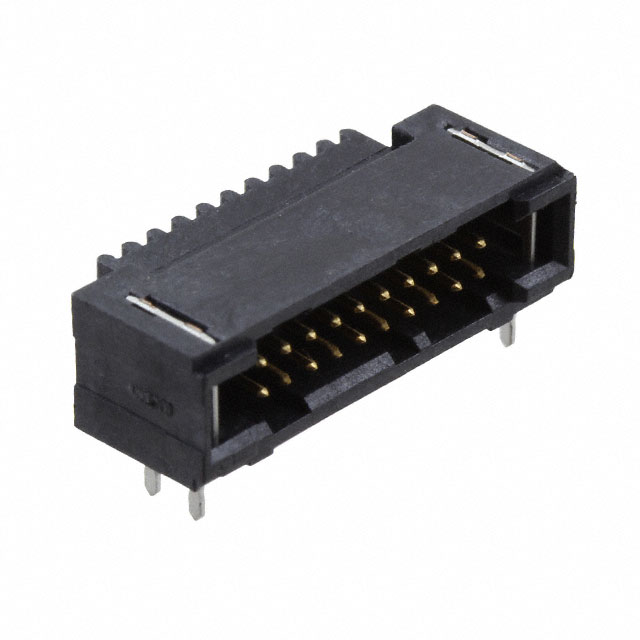

Image is representational - see manufacturer specifications
Samtec Authorized Distributor

TFM-110-02-L-DH

Conn Shrouded Header (4 Sides) HDR 20 POS 1.27mm Solder RA Side Entry SMD TIGER EYEA„¢ Tube ...

View Datasheet Ask the Datasheet
RoHS Compliant
Tube Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The SAMTEC TFM-110-02-L-DH is a high-quality, shrouded header connector designed for efficient and reliable electrical connections. It features four-sided shrouding, providing enhanced protection and stability to the 20-position header. With a pitch of 1.27mm, this solder right angle side entry connector is perfect for surface mount applications. The TFM-110-02-L-DH is part of the renowned TIGER EYE„¢ series, known for its exceptional performance and durability. Packed in a tube for easy storage and handling, this connector is a reliable choice for your electronic projects.

Search Keywords: TFM11002LDH

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Samtec
Part No:
TFM-110-02-L-DH
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CR
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
Tube
Type:
Shrouded Header (4 Sides)
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Surface Mount
Pitch:
1.27 mm
Number of Contacts:
20
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
3.2/Contact A
Termination Method:
Solder
Operating Temperature:
-55 to 125 °C

FREQUENTLY ASKED QUESTIONS

Is TFM-110-02-L-DH RoHS compliant?

Yes, TFM-110-02-L-DH is RoHS compliant.

What is the lead time for TFM-110-02-L-DH?

The standard lead time for TFM-110-02-L-DH is approximately 2 weeks. In-stock quantities ship from Master Electronics.

  Different packaging options available.  See Alternatives

IN STOCK: 201

Can Ship immediately

Manufacturer Stock: 22   can ship 11/23/26

Minimum Order Quantity: 5

Factory Lead-Time 2 Weeks can ship 11/26/26

Price (USD)

Qty
Unit Price
5
$4.54
25
$4.34
100
$4.17
250
$4.05
500
$3.16
1,000
$2.89
2,500 +
$2.33
