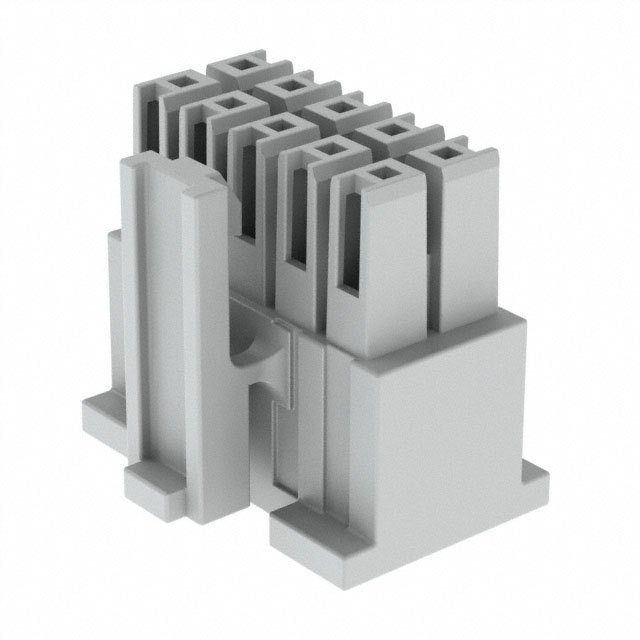

Image is representational - see mfr. specs

TCSD-10-01-N

Samtec

Wire-To-Board Connector - 2 mm - 20 Contacts - Receptacle - IDC / IDT - 2 Rows. ...

Datasheet

RoHS Compliant

Tube Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The TCSD-10-01-N from Samtec is a 2.00mm (0.0787") pitch TCSD series Tiger Eye IDC ribbon socket assembly with 20 contacts. This socket strip mates with Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM (-SR), ZSTMM series connectors. It complies with UL E111594 standard. Accepts lead size from 0.48mm (0.019inch) to 0.53mm (0.021inch) and insertion depth ranges from 2.8mm (0.113inch) to 3.17mm (0.125inch).

Product Highlights:

Potential Applications:

Search Keywords: TCSD1001N

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Samtec

Part No:

TCSD-10-01-N

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536694040

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
