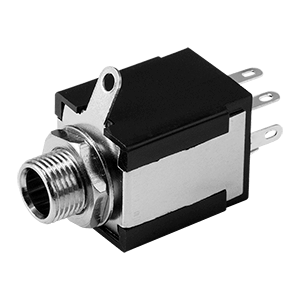

SJ-63023H by same sky®’s
Image is representational - see mfr. specs

SJ-63023H

Same Sky®’s

6.35 mm - Stereo - Vertical - Panel Mount - 3 Conductors - 2 Internal Switches - Audio Jack Connector ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

SJ-63023H is a panel mount audio jack designed for 6.35mm (1/4") mating plugs, featuring 3 conductors and 2 isolated switches. It offers a rated input voltage of 12 Vdc and a maximum rated input current of 1 A, with contact resistance of 30 mO maximum and insulation resistance of 100 MO minimum at 500 Vdc. The jack features an M9xP0.75 metric threaded barrel with included nut and washer for secure panel mounting, and operates over a temperature range of -25°C to +70°C with a mechanical life of 5,000 cycles. Common applications include professional audio equipment, musical instruments, and industrial audio systems where reliable switching and durable connections are required.

Search Keywords: SJ63023H

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Same Sky®’s
Part No:
SJ-63023H
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Bag

IN STOCK: 1,000

Can Ship immediately

Minimum Order Quantity: 10

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
10
$2.87
100
$2.33
250
$2.22
500
$2.15
1,000
$1.86
3,000
$1.81
5,000
$1.80
8,000 +
$1.79
Suppliers Standard Package
