PJ-026A

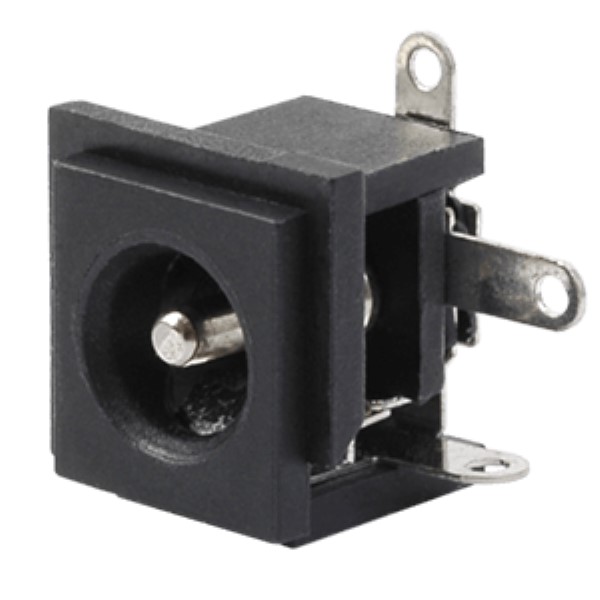

Same Sky®’sDC Power Jack Connector - 2.0 x 6.0 mm - 2.5 A - Vertical - Panel Mount ...
DESCRIPTION
The PJ-026A is a vertical panel-mount DC power jack designed for reliable power distribution in electronic equipment. It features a 2.0 mm center pin with a rated input voltage of 24 Vdc and maximum current rating of 2.5 A, providing robust electrical connectivity. The jack exhibits excellent electrical characteristics including contact resistance of 50 mO (terminal to plug) and 30 mO (closed circuit), insulation resistance of 100 MO at 500 Vdc, and voltage withstand capability of 500 Vac at 50/60 Hz for 1 minute. Mechanically, it offers an insertion/withdrawal force range of 0.3 to 3 kg, terminal strength of 500 g, and an operational lifespan of 5,000 cycles across a temperature range of -25°C to +85°C. The device is constructed with brass and copper alloy terminals plated with tin, and a PBT plastic housing, making it suitable for industrial power supply applications, consumer electronics, and equipment requiring secure DC power connections.
Search Keywords: PJ026A
SPECIFICATIONS
IN STOCK: 4,545
Can Ship immediately
Minimum Order Quantity: 159
Factory Lead-Time 24 Weeks
3D Model
Datasheet
