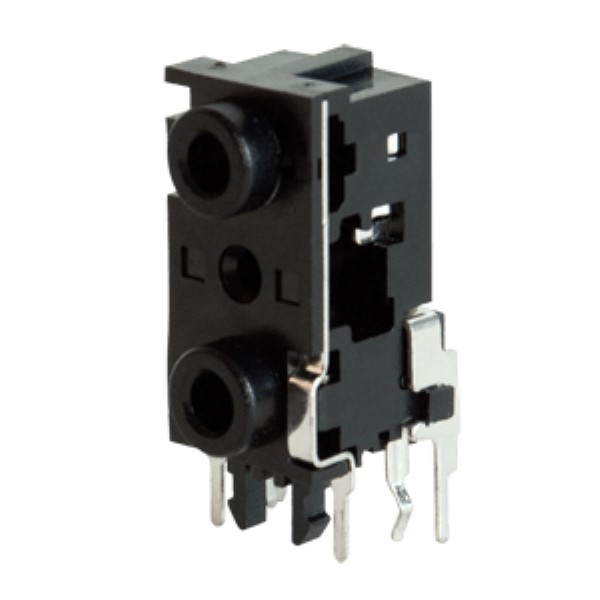

SJD-3510-33
SJD-3510-33
In Stock: 1,768
Minimum Order: 1
VIEW PRODUCT
045-0807R by same sky®’s
Image is representational - see mfr. specs

045-0807R

Same Sky®’s

Conn Jack Dual Stereo 3.5MM R/a ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 045-0807R is a dual stack 3.5mm stereo jack PCB-mounted connector designed for audio and signal applications. It features a rated capacity of 16V DC at 0.3A with a maximum contact resistance of 50 mO and insulation resistance of 100 MO minimum at 500V DC. The connector is constructed with brass and phosphor bronze (PBS) terminals plated with tin, a PBT HF + PA46 HF cover, and NY66 housing material, providing robust mechanical and electrical performance. It withstands 500V AC RMS for 1 minute and is rated for 5,000 operational cycles. This connector is ideal for consumer audio equipment, portable devices, and professional audio interfaces where reliable stereo signal transmission and compact PCB integration are required.

Search Keywords: 0450807R

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Same Sky®’s
Part No:
045-0807R
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 1,768

Can Ship immediately

Minimum Order Quantity: 50

Price (USD)

Qty
Unit Price
50
$1.27
600
$1.22
2,000
$1.16
3,000
$1.13
9,000 +
$1.08
