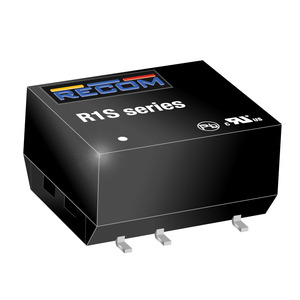

Image is representational - see mfr. specs

R1S-0505/H

The R1S-0505/H is a 1W, unregulated, single-output SMD DC/DC converter with a 5V input, 5V output, and 3kVDC isolation. ...

Datasheet

RoHS Compliant

Tube Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The R1S-0505/H is a 1 Watt, surface-mount, unregulated DC/DC converter designed for low-power isolation and voltage matching applications. It converts a nominal 5VDC input to a single 5VDC output, delivering up to 200mA of current with an efficiency of 72-78%. This model, identified by the '/H' suffix, provides high isolation of 3kVDC and is certified for medical safety standards (EN-60601-1). The converter operates at full power across an extended ambient temperature range of -40°C to +100°C without derating and has a typical output ripple of 50mVp-p. As an enclosed open-frame component suitable for fully automated assembly, it is ideal for use in general-purpose and industrial equipment where a compact, isolated power source is required.

Product Highlights:

Potential Applications:

Search Keywords: R1S0505H

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

RECOM

Part No:

R1S-0505/H

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8504409580

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
