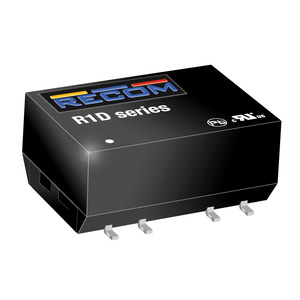

R1D-0509-R

RECOM

The R1D-0509-R is a 1W unregulated, dual output SMD DC/DC converter that converts a 5VDC input to a ±9VDC output. ...

Datasheet

RoHS Compliant

Reel Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The R1D-0509-R is a 1W dual output, unregulated DC/DC converter designed for general purpose and industrial low-power isolation and voltage matching applications. It accepts a nominal 5VDC input and provides a ±9VDC output with a corresponding current of ±56mA. This converter features a wide operating temperature range of -40°C to +100°C without derating and offers a typical efficiency of 74-78%. Standard features include 1kVDC/1s isolation and suitability for fully automated assembly, with this specific model supplied in tape and reel packaging.

Product Highlights:

Potential Applications:

Search Keywords: R1D0509R

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

RECOM

Part No:

R1D-0509-R

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8504409580

COO:

ECCN:

EAR99

Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
