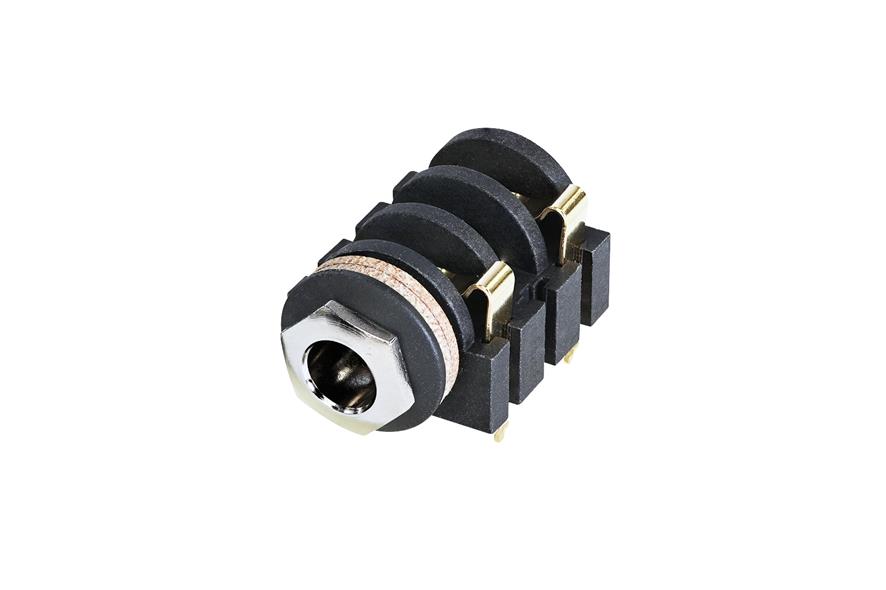

NYS2152G by rean
Image is representational - see manufacturer specifications
REAN Authorized Distributor

NYS2152G

The NYS2152G is a 1/4" phone jack designed for printed circuit board (PCB) mounting. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The NYS2152G is a 1/4" phone jack from REAN, intended for audio signal connections on printed circuit boards. This component features a compact design with overall dimensions of 33.50 mm in length, 20.00 mm in width, and 8.50 mm in height. It is designed for PCB mounting with a specified layout requiring six 1.50 mm diameter holes and also supports rear-side panel mounting with a required cutout of 11.40 mm. Its configuration makes it suitable for various audio equipment applications where a robust, board-mounted 1/4" connection is needed.

Search Keywords: NYS2152G

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
REAN
Part No:
NYS2152G
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
CN
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100

FREQUENTLY ASKED QUESTIONS

Is NYS2152G RoHS compliant?

Yes, NYS2152G is RoHS compliant.

What is the lead time for NYS2152G?

The standard lead time for NYS2152G is approximately 3 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 700

Can Ship immediately

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 3 Weeks

Price (USD)

Qty
Unit Price
100
$1.311
300
$1.244
500
$1.157
1,000
$1.000
2,500
$0.927
5,000
$0.924
7,500
$0.922
10,000 +
$0.920
Supplier's Standard Package
