3750-0 by pomona electronics
Image is representational - see mfr. specs

3750-0

Pomona Electronics

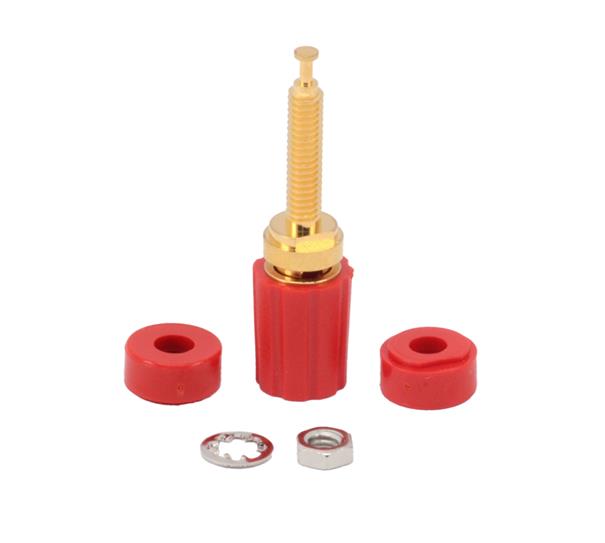

The 3750-0 is a gold-plated brass, panel-mount standard binding post that accepts standard banana plugs, wires, or spade lugs. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Can only ship inside the US. If exported, the warranty will be void.

DESCRIPTION

The 3750-0 is a standard binding post designed for versatile electrical connections. It is constructed from gold-plated brass with polycarbonate insulation for reliable performance. This component is rated for a current of 15 Amperes and has a maximum operating temperature of +115°C (+239°F). For hands-free use in controlled voltage environments, it supports up to 2500 Vrms. It is designed for mounting in panels with a thickness ranging from 0.070 to 0.250 inches (1.77mm to 6.35mm). Its ability to accept banana plugs, wires, or spade lugs makes it a flexible choice for test and measurement setups, power supplies, and various electronic prototyping applications.

Search Keywords: 37500

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Pomona Electronics
Part No:
3750-0
Alias/AKA:
1929970
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8535908040
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
5
Type:
Binding Post
Gender:
SKT
Body Orientation:
Straight
Mounting:
Panel Mount
Number of Contacts:
1
Wire Size:
N/A
Maximum Current Rating:
15 A
Operating Temperature:
115(Max) °C
Dimension:
45.21 x 11.18 mm

IN STOCK: 76

Can Ship immediately

Minimum Order Quantity: 5

Multiple: 5

Factory Lead-Time 2 Weeks

Qty
Unit Price
5
$11.75
25
$11.62
50
$11.50
100
$11.44
250
$11.39
500
$11.33
1,000 +
$11.27
Suppliers Standard Package
