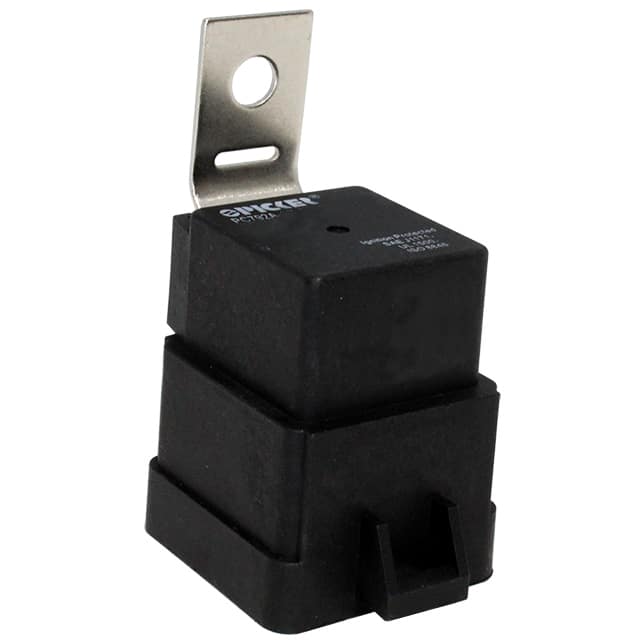

PC792A-1C-C3-24S-DN-X by picker components
Image is representational - see mfr. specs

PC792A-1C-C3-24S-DN-X

Picker Components

The PC792A-1C-C3-24S-DN-X is a sealed, SPDT automotive mini ISO relay featuring a 24VDC coil, a parallel diode, and a weatherproof case. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PC792A-1C-C3-24S-DN-X is an automotive plug-in mini ISO relay designed for high-current switching. This model features a 1C (SPDT) contact configuration with a normally open rating of 40A at 14VDC and a normally closed rating of 30A at 14VDC. It operates with a 24VDC coil that has a nominal power consumption of 1.6W and includes an integrated parallel diode for coil suppression. Housed in a sealed, weatherproof case with a metal mounting bracket and tin-plated quick connect terminals, it is built for durability in harsh conditions. With an operating temperature range of -40°C to 125°C, this RoHS compliant relay is ideal for various demanding automotive applications.

Search Keywords: PC792A1CC324SDNX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Picker Components
Part No:
PC792A-1C-C3-24S-DN-X
Unit of Measure:
Per Each
RoHS:
Yes
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
16

IN STOCK: 1

Can Ship immediately

Buy all 1 in-stock or the regular minimum order quantity of 3

Stock lot only: 1

Minimum Order Quantity: 3

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
1
$10.648
3
$9.680
16
$9.190
25
$3.780
50
$3.030
100
$2.830
500
$2.230
1,000
$2.150
2,500 +
$2.100
