VS-08-ST-RJ45

RJ45 pin insert - CAT5e - 8-pos. - shielded - IDC connection method - for litz wires AWG 26 and solid wires AWG 26 ... 24 ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The PHOENIX CONTACT part 1688573 is an RJ45 pin insert designed for CAT5e connections. This shielded pin insert features an 8-position IDC connection method, making it easy to install and connect litz wires AWG 26 and solid wires AWG 24 to 26. Perfect for networking applications where reliable and high-speed connections are essential, this RJ45 pin insert ensures secure and efficient data transmission.

Search Keywords: VS08STRJ45

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
VS-08-ST-RJ45
Alias/AKA:
1688573
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
5
Type:
RJ-45
Body Orientation:
Straight
Mounting:
Cable Mount
Gender:
PL
Number of Contacts:
8
Maximum Current Rating:
1.5 A
Operating Temperature:
-40 to 85 °C

FREQUENTLY ASKED QUESTIONS

Is VS-08-ST-RJ45 RoHS compliant?

Yes, VS-08-ST-RJ45 is RoHS compliant.

What is the lead time for VS-08-ST-RJ45?

The standard lead time for VS-08-ST-RJ45 is approximately 2 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 155

Ships today, if you order in

Factory Lead-Time 2 Weeks

Price (USD)

Qty
Unit Price
1
$4.84
5 +
$4.60
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

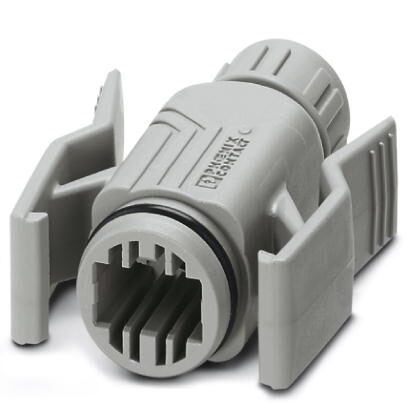

VS-08-T-RJ45/IP67

RJ45 sleeve housing - IP67 - for pin insert VS-08-ST-RJ45 - with push-pull interlocking fo ...

VS-08-T-RJ45/IP-20

RJ45 sleeve housing IP20 - for pin insert VS-08-ST-RJ45 - with push-pull interlocking for ...

VS-08-T-G-RJ45/IP20

RJ45 sleeve housing - IP20 - for pin insert VS-08-ST-RJ45 - with push-pull interlocking fo ...

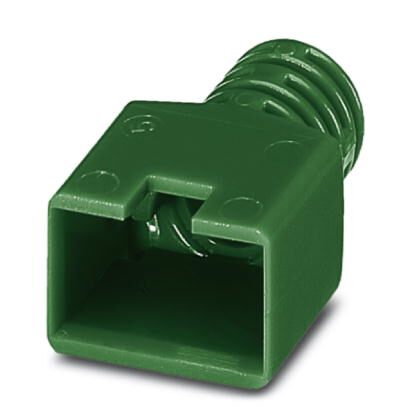

VS-08-KS/GN

The VS-08-KS/GN is a green RJ45 bending protection sleeve designed for cables with an exte ...

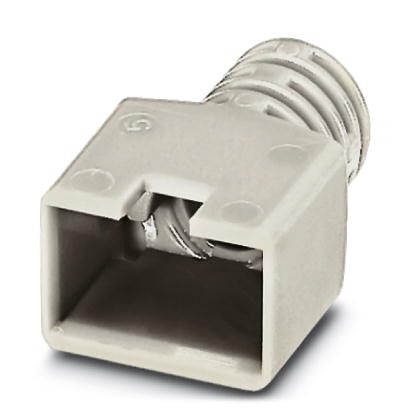

VS-08-KS/GR

RJ45 bend protection sleeve - for pin insert VS-08-ST-RJ45 - cable cross section up to 6 m ...

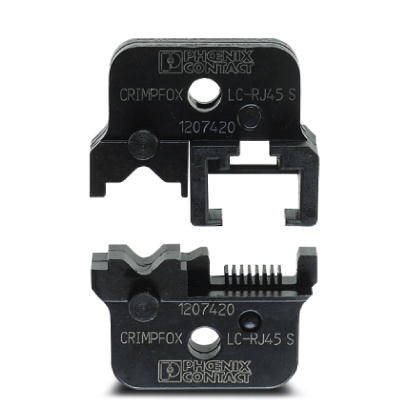

CRIMPFOX-LC-RJ-45S

Die for the CRIMPFOX LC basic crimping pliers to crimp the VARIOSUB RJ45 male insert VS-08 ...

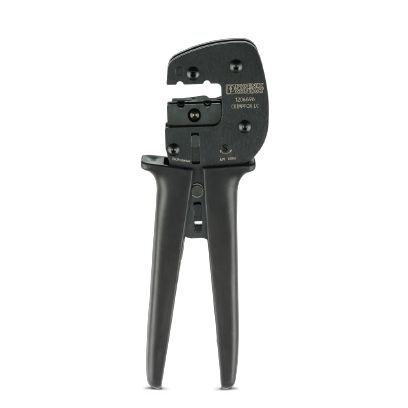

CRIMPFOX-LC

Basic crimping pliers - with short handles - without crimp inserts - with locator takeup
