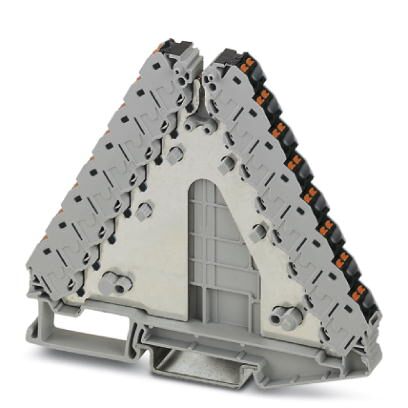

3270226 by phoenix contact
Image is representational - see mfr. specs

3270226

Phoenix Contact

Potential distributors - nom. voltage: 250 V - nominal current: 17.5 A - cross section: 0.14 mm² - 2.5 mm² - AWG: 14 - 26 - connection method: Push-in connection - number of positions: 2 - number of connections: 32 - width: 8.3 mm - length: 100 mm - color: gray - color of connection elements: red - mounting: NS 35/7,5 - NS 35/15 ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

Potential distributors - nom. voltage: 250 V - nominal current: 17.5 A - cross section: 0.14 mm² - 2.5 mm² - AWG: 14 - 26 - connection method: Push-in connection - number of positions: 2 - number of connections: 32 - width: 8.3 mm - length: 100 mm - color: gray - color of connection elements: red - mounting: NS 35/7,5 - NS 35/15

Search Keywords: 3270226

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3270226
Alias/AKA:
PTRVB-8-PV-/RD
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
PL
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Body Orientation:
N/A

IN STOCK: 1

Can Ship immediately

Manufacturer Stock: 339   can ship 5/4/26

On Order: 20   can ship 5/25/26

Factory Lead-Time 5 Weeks can ship 5/27/26

Qty
Unit Price
1
$37.01
5 +
$35.16
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Accessories

PT-IL

Operating decal for the push-in Technology

MPS-IH-RD

Insulating sleeve - color: red

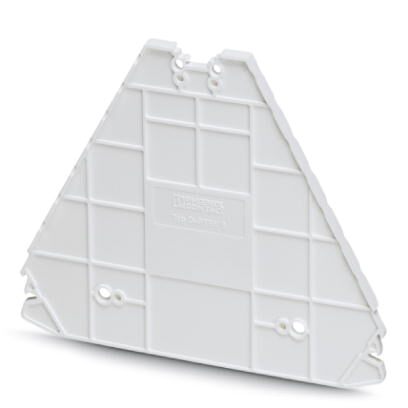

D-PTRV-8-WH

End cover - length: 100 mm - width: 3.8 mm - height: 80.8 mm - color: white

RPS

Reducing plug - color: gray

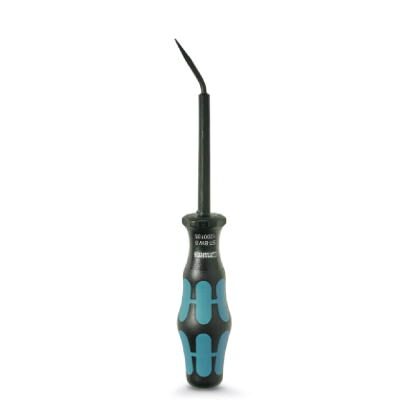

ST-BW-0

Actuation tool - for all 1.5 mm² spring cages from PT 1,5/S and FT 1,5/S

MPS-MT

Test plugs - with solder connection up to 1 mm² conductor cross section - color: gray

MPS-IH-GN

Insulating sleeve - color: green

D-PTRV-8-WH-A-H

End cover - length: 100 mm - width: 2.2 mm - height: 80.8 mm - color: white

MPS-IH-YE

Insulating sleeve - color: yellow

MPS-IH-GY

Insulating sleeve - color: gray

MPS-IH-BK

Insulating sleeve - color: black

MPS-IH-BU

Insulating sleeve - color: blue

MPS-IH-WH

Insulating Sleeve, MPS-IH WH Series | Phoenix Contact 0201663

FBST-500-PLC-RD

Continuous plug-in bridge - length: 500 mm - color: red

CLIPFIX-35

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

FBST-500-PLC-GY

Continuous plug-in bridge - length: 500 mm - color: gray

FBST-500-PLC-BU

Continuous plug-in bridge - length: 500 mm - color: blue

FBST-500-PLC-BN

Continuous plug-in bridge - length: 500 mm - color: brown

E/NS-35-N

Phoenix Contact DIN Rail End Clamp; E/NS 35 N; for 35mm DIN Rail; Screw Terminal; Gray

E/UK

End clamp - width: 9.5 mm - height: 35.3 mm - material: PA - length: 50.5 mm - Mounting on ...

E/UK-1

End clamps - for supporting the ends of double-level and three-level terminal blocks - wid ...

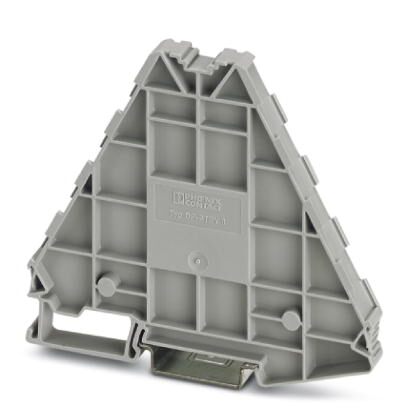

DP-PTRV-8

Spacer plate - length: 100 mm - width: 8.3 mm - height: 86 mm - color: gray

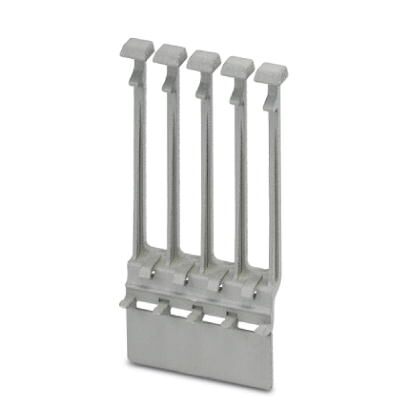

CDC-PTRV

Retaining bracket - via four PTRV single modules - pitch: 8.3 mm - width: 35.6 mm - height ...

CLIPFIX-35-5

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

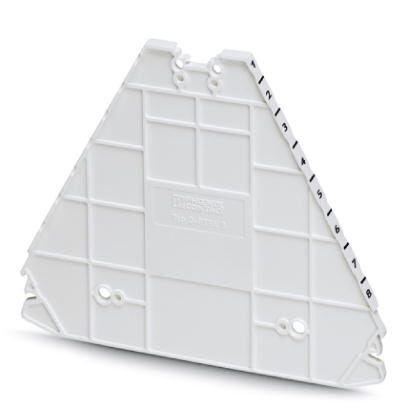

D-PTRV-8-WH-1-8

End cover - length: 100 mm - width: 2.2 mm - height: 80.8 mm - color: white
