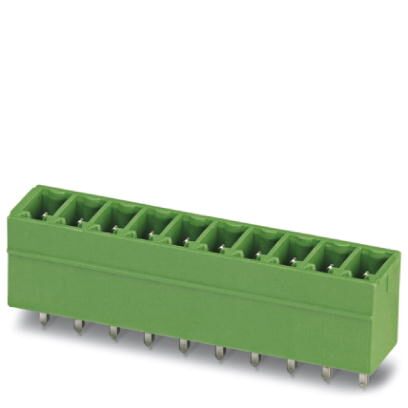

1803507
1803507
In Stock: 345
Minimum Order: 10
VIEW PRODUCT

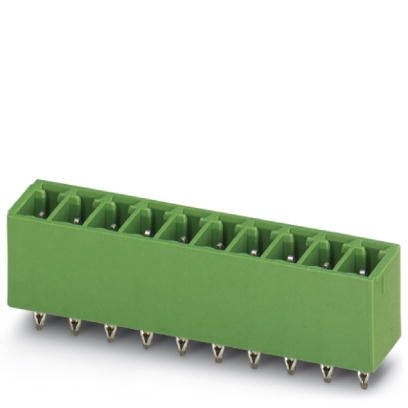

1860728 by phoenix contact
Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

1860728

PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 10 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Press-in technology - pin layout: Linear pinning - solder pin [P]: 3.8 mm ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The PHOENIX CONTACT PCB header part 1803507 is designed for high-performance applications with a nominal current rating of 8 A and a rated voltage of 160 V. This header features a nominal cross-section of 1.5 mm², 10 positions with a pitch of 3.81 mm, and a bright green color for easy identification. The contact surface is coated with tin for improved conductivity, and the header is compatible with wave soldering mounting techniques. The linear pinning layout and solder pin length of 3.4 mm make it easy to integrate into various PCB designs.

Search Keywords: 1860728

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1860728
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Wire to Board
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
10
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
PRESS FIT
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced

FREQUENTLY ASKED QUESTIONS

Is 1860728 discontinued?

Yes, 1860728 from Phoenix Contact is discontinued (end-of-life October 2019). Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

What replaces 1860728?

The recommended replacement for 1860728 is 1803507 from Phoenix Contact, available from Master Electronics.

Is 1860728 RoHS compliant?

Yes, 1860728 is RoHS compliant.

What is the lead time for 1860728?

The standard lead time for 1860728 is approximately 6 weeks. In-stock quantities ship from Master Electronics.

  This product is discontinued, but still in stock

IN STOCK: 13

Can Ship immediately

Buy all 13 in-stock or the regular minimum order quantity of 50

Stock lot only: 13

Minimum Order Quantity: 50

Multiple: 50

Price (USD)

Qty
Unit Price
1
$4.961
50
$4.510
100
$4.380
250
$4.270
500
$4.240
1,000
$4.190
2,500
$4.160
5,000 +
$4.140
Supplier's Standard Package
