1852105

Phoenix Contact

The 1852105 is a 10-position, 5.08 mm pitch feed-through assembly frame accessory for COMBICON plugs. ...

Datasheet

RoHS Compliant

End of Life: Final orders must be placed by 07/31/2027

Certificate of Compliance Guarantee

DESCRIPTION

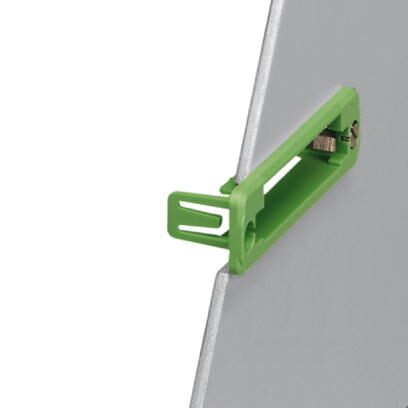

The 1852105 is a feed-through assembly frame designed for use with the inverted COMBICON plug IC 2,5/-STGF-5,08. This 10-position green frame features a 5.08 mm pitch and is constructed from polyamide (PA) insulating material with a UL 94 V0 flammability rating. It provides a vibration-resistant screw connection via screw flanges and allows for snap-locking of the IC plug into the frame. The frame is suitable for panel mounting with a thickness of up to 1.5 mm, enabling secure feed-through connections in electronic enclosures.

Product Highlights:

Potential Applications:

Search Keywords: 1852105

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Phoenix Contact

Part No:

1852105

Alias/AKA:

IC-DFR-10

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

3926909989

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
