1842597 by phoenix contact

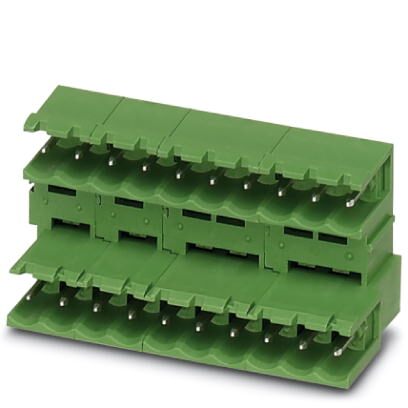

Image is representational - see mfr. specs

1842597

Phoenix Contact

PCB headers - nominal current: 10 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 10 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.2 mm - Can be aligned! Mounting flange: Order No. 1736771 - 1736768. In combination with MVSTB or FKCV plug components - both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible! ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

This PCB header from PHOENIX CONTACT (part 1842597) is designed for various electronic applications. It has a nominal current rating of 10 A and a rated voltage of 320 V. The header has a nominal cross section of 2.5 mm² and features 10 positions with a pitch of 5.08 mm. It comes in a vibrant green color and has a tin contact surface.For installation, this header is designed for wave soldering. It has a linear pinning layout and solder pins with a diameter of 3.2 mm. Additionally, it can be aligned according to specific requirements.To complete the setup, this PCB header can be used in combination with MVSTB or FKCV plug components. However, it requires the use of both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR). Please note that combination with TMSTBP plug components is not possible.To facilitate mounting, you can order the compatible mounting flanges with the following order numbers: 1736771 or 1736768.Overall, this PCB header provides reliable and efficient connections for your electronic projects while ensuring optimal performance and compatibility with compatible plug components.

Search Keywords: 1842597

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1842597
Alias/AKA:
MDSTB-2-5/10-G-5-08
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
GR
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50

IN STOCK: 0

Minimum Order Quantity: 5

Factory Lead-Time 5 Weeks

Qty
Unit Price
5
$13.54
25
$12.08
50
$11.22
100
$10.61
250
$10.45
500
$10.20
1,000 +
$10.04
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides
