1830677 by phoenix contact

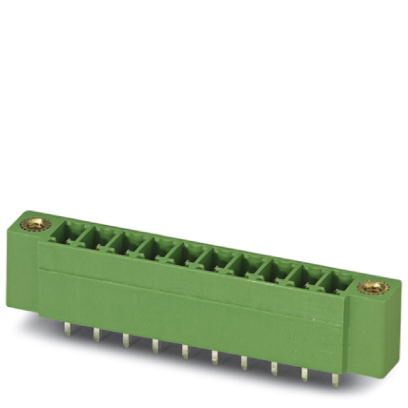

Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

1830677

The 1830677 is a 10-position, wave-soldered base strip header with a 3.81 mm pitch and an 8 A nominal current rating. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 1830677 is a 10-position base strip header designed for PCB applications. It features a nominal current of 8 A and a rated voltage (III/2) of 160 V, with a rated surge voltage of 2.5 kV. The header has a compact 3.81 mm pitch, tin-plated contacts, and is intended for wave soldering mounting. Constructed from green PBT insulating material with a V0 flammability rating, this low-profile pin strip is ideal for creating secure connections in space-constrained electronic assemblies.

Search Keywords: 1830677

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1830677
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Wire to Board
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
10
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A

FREQUENTLY ASKED QUESTIONS

Is 1830677 RoHS compliant?

Yes, 1830677 is RoHS compliant.

What is the lead time for 1830677?

The standard lead time for 1830677 is approximately 26 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 254

Ships today, if you order in

On Order: 200   can ship 12/18/26

Minimum Order Quantity: 5

Factory Lead-Time 26 Weeks

Price (USD)

Qty
Unit Price
5
$5.79
25
$4.41
100
$4.36
300
$4.32
500
$4.31
1,000
$4.30
2,500
$4.29
5,000 +
$4.28
Supplier's Standard Package
