1827949 by phoenix contact

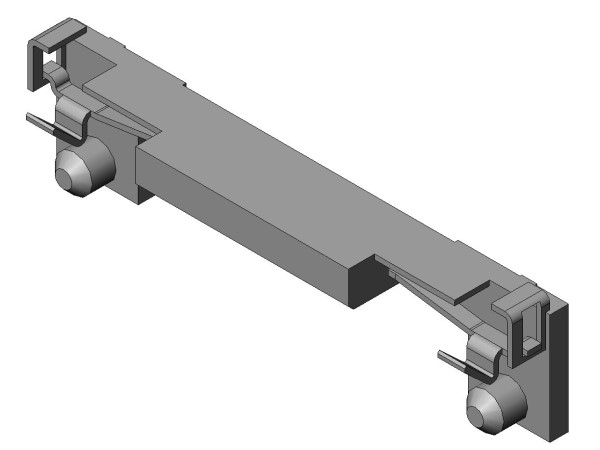

Image is representational - see mfr. specs

1827949

Phoenix Contact

PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 10 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1827949 is a set of PCB headers designed for electrical connections on printed circuit boards. These headers have a nominal current capacity of 8 A and are rated for a voltage of 160 V (III/2 rating). With a nominal cross section of 1.5 mm², these headers provide reliable and efficient power transmission. The set includes 10 headers, each placed with a pitch of 3.81 mm for easy installation and organization. The headers come in a vibrant green color, making them easily distinguishable on the PCB. With a tin contact surface, these headers ensure low resistance and secure connections. For easy mounting, they are designed for wave soldering. The pin layout is linear, providing a straightforward and efficient connection arrangement. The solder pin measures 3.4 mm, ensuring a stable and robust attachment to the PCB.

Search Keywords: 1827949

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1827949
Alias/AKA:
MC-1-5/10-GF-3-81
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
10
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A

IN STOCK: 0

On Order: 100   can ship 8/7/26

Minimum Order Quantity: 5

Factory Lead-Time 20 Weeks

Qty
Unit Price
5
$6.19
25
$5.49
100
$4.87
300
$4.54
500
$4.47
1,000
$4.41
2,500
$4.34
5,000 +
$4.27
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
