1826995 by phoenix contact

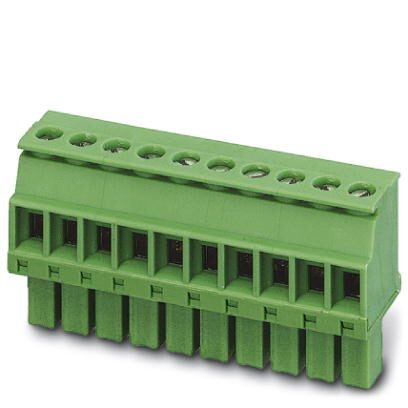

Image is representational - see mfr. specs

1826995

Phoenix Contact

PCB connector - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 4 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1826995 is a PCB connector designed for various electrical applications. With a nominal current of 8 A and a rated voltage of 160 V, this connector ensures reliable and efficient power transmission. It has a nominal cross section of 1.5 mm², making it suitable for connecting small to medium-sized cables.This connector features 4 positions, offering ample connectivity options for your PCB projects. The pitch of 3.81 mm allows for easy installation and integration into PCB designs. The connection method employed is a Screw connection with tension sleeve, ensuring secure and stable connections. The connector is colored green, making it easily identifiable amidst other components.Furthermore, the contact surface of the connector is coated with tin, providing excellent conductivity and resistance against corrosion. This extends the lifespan of the connector, making it a durable and reliable choice for your electrical projects. Whether you're designing a new PCB or upgrading existing ones, the PHOENIX CONTACT part 1826995 is a high-quality component that will meet your power transmission needs effectively.

Search Keywords: 1826995

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1826995
Alias/AKA:
MCVW-1-5/-4-ST-3-81
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
3.81 mm
Number of Circuits:
4
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Wire Size:
16-28 AWG
Operating Temperature:
N/A

IN STOCK: 10

Ships today, if you order in

On Order: 437   can ship 5/11/26

Minimum Order Quantity: 5

Factory Lead-Time 8 Weeks

Qty
Unit Price
5
$4.98
50
$3.94
100
$3.85
250
$3.77
500
$3.72
1,000
$3.68
2,500
$3.66
5,000 +
$3.64
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
