1803471 by phoenix contact

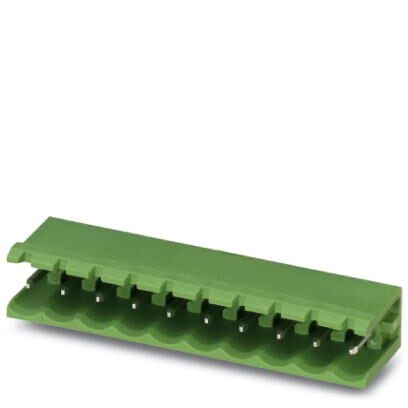

Image is representational - see mfr. specs

1803471

Phoenix Contact

The 1803471 is a 7-position, single-row PCB header with a 3.81 mm pitch designed for wave soldering applications. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1803471 is a 7-position, green PCB header from the MCV 1,5/..-G product range, designed for the COMBICON MC 1,5 plug-in system. It features a nominal current rating of 8 A, a rated voltage (III/2) of 160 V, and tin-plated pin contacts. This single-row header has a 3.81 mm pitch, a linear pinning layout with 3.4 mm solder pins, and is intended for wave soldering mounting. Its vertical connection design enables multi-row arrangements on the PCB, providing flexibility for various device designs.

Search Keywords: 1803471

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803471
Alias/AKA:
MCV-1-5/-7-G-3-81
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header (4 Sides)
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
7
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
-40 to 100 °C

IN STOCK: 313

Can Ship immediately

On Order: 500   can ship 7/6/26

Minimum Order Quantity: 10

Factory Lead-Time 11 Weeks

Qty
Unit Price
10
$2.72
50
$2.51
300
$2.46
500
$2.40
1,000
$2.29
2,500
$2.28
5,000
$2.27
7,500 +
$2.26
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

0804109

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

1734634

Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...

Show 1 More
