1803303 by phoenix contact

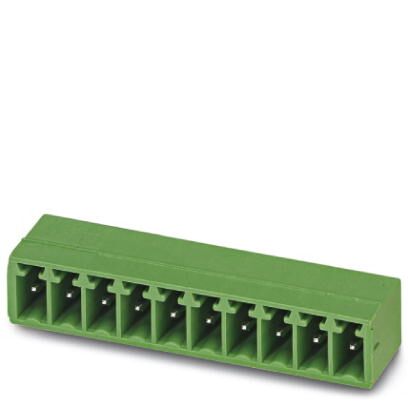

Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

1803303

PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 5 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The PHOENIX CONTACT part 1803303 is a high-quality PCB header designed for optimal performance in electronic applications. With a nominal current rating of 8 A and a rated voltage of 160 V, this header ensures efficient and reliable power transmission. Featuring a nominal cross section of 1.5 mm² and 5 positions, it allows for secure and precise connections. The pitch of 3.81 mm makes it compatible with various board layouts. In an eye-catching green color, this header is easily identifiable. The contact surface is coated with tin for enhanced conductivity and corrosion resistance. Designed for convenient installation, it is suitable for wave soldering mounting. The linear pinning pin layout and solder pin with a diameter of 3.4 mm offer ease of use and robustness in various applications. Overall, the PHOENIX CONTACT part 1803303 is a reliable and versatile choice for any electronic project, delivering excellent performance and long-lasting durability.

Search Keywords: 1803303

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803303
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Type:
Shrouded Header (4 Sides)
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
5
Maximum Voltage Rating:
160@IEC,300@UL V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A

FREQUENTLY ASKED QUESTIONS

Is 1803303 RoHS compliant?

Yes, 1803303 is RoHS compliant.

What is the lead time for 1803303?

The standard lead time for 1803303 is approximately 25 days. In-stock quantities ship from Master Electronics.

IN STOCK: 0

On Order: 283   can ship 9/2/26
On Order: 3,000   can ship 10/30/26

Minimum Order Quantity: 10

Factory Lead-Time 25 Weeks

Price (USD)

Qty
Unit Price
10
$2.04
100
$1.77
250
$1.68
500
$1.67
1,000
$1.66
2,500
$1.65
5,000
$1.64
7,500 +
$1.63
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

1734634

Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

1841174

Conn Fiber Optic M Solder RA Thru-Hole

1841213

Fiber optics, Pitch: 3.81 mm, Number of positions: 10, Dimension a: 4 mm, Color: transpare ...

1841190

Fiber optics, Pitch: 3.81 mm, Number of positions: 10, Dimension a: 2.3 mm, Color: transpa ...

Show 3 More
