1757255

PCB headers - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.5 mm ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 3, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering

Search Keywords: 1757255

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1757255
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Type:
Shrouded Header (4 Sides)
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Through Hole
Pitch:
5.08 mm
Number of Contacts:
3
Maximum Voltage Rating:
320 V
Maximum Current Rating:
12 A
Termination Method:
Solder
Operating Temperature:
N/A

FREQUENTLY ASKED QUESTIONS

Is 1757255 RoHS compliant?

Yes, 1757255 is RoHS compliant.

What is the lead time for 1757255?

The standard lead time for 1757255 is approximately 13 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 750

Can Ship immediately

Manufacturer Stock: 2,050   can ship 10/26/26

On Order: 3,000   can ship 11/5/26

Minimum Order Quantity: 250

Multiple: 250

Factory Lead-Time 13 Weeks can ship 1/11/27

Price (USD)

Qty
Unit Price
250
$0.726
500
$0.719
1,000
$0.712
2,500
$0.710
5,000
$0.709
7,500
$0.707
10,000
$0.705
15,000 +
$0.703
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Product Changes

Accessories

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

1755477

Connector Accessories Cap Straight Green

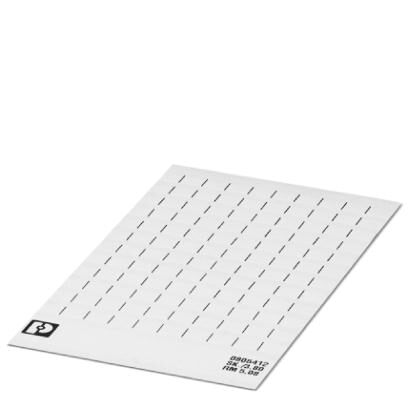

0805412

Marker card - Card - white - unlabeled - can be labeled with: Marker pen - mounting type: ...

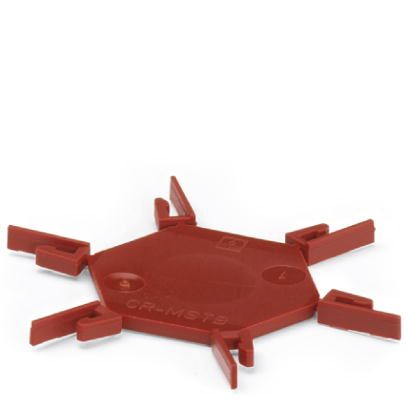

1734401

Coding section - inserted into the recess in the header or the inverted plug - red insulat ...

Show 2 More
