1757019 by phoenix contact

1757019

Phoenix Contact

PCB connector - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 2 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin ...

Datasheet
RoHS Compliant
Bulk Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1757019 from Phoenix Contact is a 2 position pluggable terminal block with screw connection. This terminal block comes with 5.08mm pitch spacing and suitable for wire size ranging from 24AWG to 12AWG. Green colour insulation Tin contact surface Plug-in direction parallel to the conductor axis Individual position coding by inserting coding profiles Polyamide (PA) insulating material UL94 V-0 flammability rating CSA, VDE, IECEE CB, CCA, EAC and cULus recognized Dimension of terminal block is 18.3mm x 15mm x 10.16mm (L x H x W) Applications Industrial

Search Keywords: 1757019

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1757019
Alias/AKA:
MSTB 2 5/ 2-ST-5 08
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Bulk
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
5.08 mm
Number of Circuits:
2
Maximum Voltage Rating:
320 V
Maximum Current Rating:
12 A
Wire Size:
12-24 AWG
Operating Temperature:
N/A

IN STOCK: 26,290

Ships today, if you order in

Minimum Order: 100

Multiple: 100

Factory Lead-Time 4 Weeks

Qty
Unit Price
100
$1.34
300 +
$1.32
Suppliers Standard Package
Log in for special pricing
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

0803883

50 Perforated 185.0MM Length Strips White Polyester Self Adhesive Unmarked Pitch As Desire ...

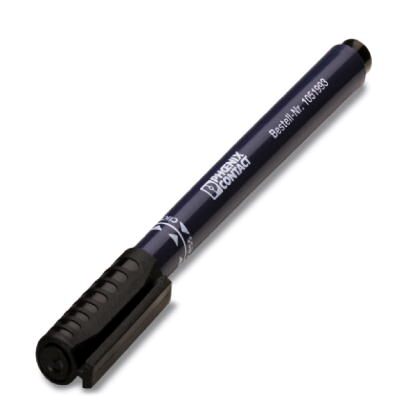

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

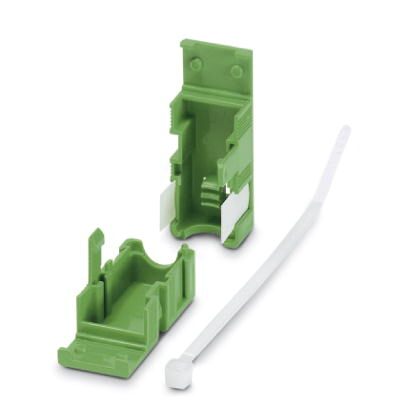

1803934

Cable housing - pitch: 0 mm - number of positions: 2 - dimension a: 10 mm - color: green

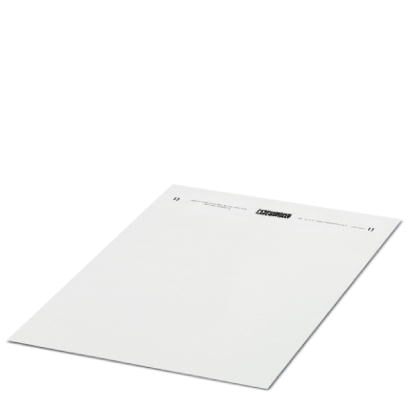

0804293

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

1205053

Actuation tool - for ST terminal blocks - insulated - also suitable for use as a bladed sc ...

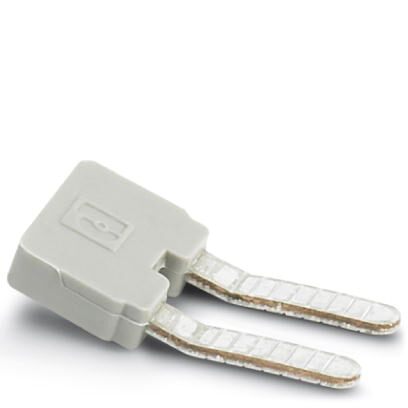

1733169

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

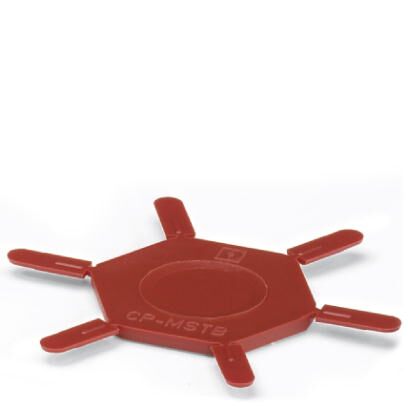

1734634

Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...
