1754601 by phoenix contact

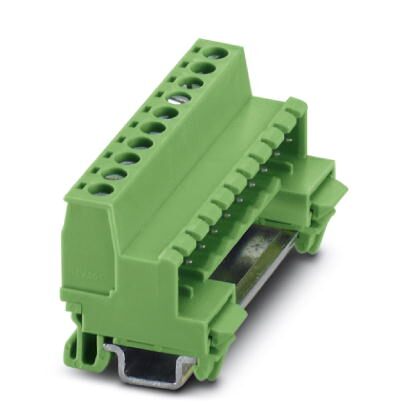

Image is representational - see mfr. specs

1754601

Phoenix Contact

PCB connector - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 10 - pitch: 5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1754601 is a 10-position, green PCB connector with nominal current of 12A and rated voltage (III/2) of 320 V. It fits conductors with cross sections of 12-24 AWG, connected by M3 screw with tension sleeve. Product's dimesions are 18.2mm x 50mm x 15mm (lxwxh), and a pitch of 5mm.

Search Keywords: 1754601

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1754601
Alias/AKA:
MSTB-2-5/10-ST
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
5 mm
Number of Circuits:
10
Maximum Voltage Rating:
320 V
Maximum Current Rating:
12 A
Wire Size:
12-24 AWG
Operating Temperature:
N/A

IN STOCK: 0

On Order: 450   can ship 5/14/26

Minimum Order Quantity: 5

Factory Lead-Time 6 Weeks

Qty
Unit Price
5
$14.88
25
$10.24
50
$9.37
100
$9.17
250
$8.49
500
$8.30
1,000 +
$8.20
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

1734634

Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...

1205053

Actuation tool - for ST terminal blocks - insulated - also suitable for use as a bladed sc ...

0804183

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

1783740

Cable housing - pitch: 0 mm - number of positions: 10 - dimension a: 50 mm - color: green

1733169

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

Show 3 More
