1715789 by phoenix contact

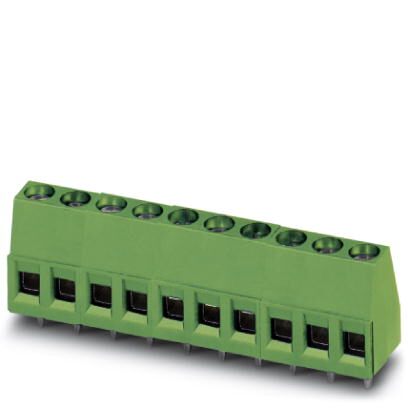

Image is representational - see mfr. specs

1715789

Phoenix Contact

PCB terminal block - nominal current: 17.5 A - rated voltage (III/2): 400 V - nominal cross section: 1.5 mm² - pitch: 5.08 mm - number of positions: 8 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connection direction: 0 ° - color: green - Pin layout: Linear pinning - Solder pin [P]: 3.5 mm. The article can be aligned to create different nos. of positions! ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1715789 is a reliable PCB terminal block designed for optimal performance. This terminal block has a nominal current rating of 17.5 A and a rated voltage of 400 V (III/2). With a nominal cross-section of 1.5 mm² and a pitch of 5.08 mm, it offers a secure connection for your electronic components. Featuring 8 positions and a screw connection with tension sleeve, this terminal block ensures a stable and durable connection. Its wave soldering mounting style makes installation easy and efficient. The conductor/PCB connection direction is 0°, and it comes in a sleek green color. The linear pinning layout enables versatile positioning options, allowing you to align the terminal block to create different numbers of positions. Additionally, the solder pin has a length of 3.5 mm, providing a secure and reliable connection. Trust the PHOENIX CONTACT part 1715789 for your PCB connection needs.

Search Keywords: 1715789

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1715789
Alias/AKA:
MKDS-1-5/-8-5-08
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
PC Terminal Block
Mounting:
Through Hole
Gender:
N/A
Termination Method:
Solder
Pitch:
5.08 mm
Number of Circuits:
8
Maximum Voltage Rating:
400 V
Maximum Current Rating:
17.5 A
Wire Size:
14-26 AWG
Operating Temperature:
N/A

IN STOCK: 250

Ships today, if you order in

Minimum Order Quantity: 50

Multiple: 50

Factory Lead-Time 10 Weeks

Qty
Unit Price
50
$4.39
100
$4.14
250
$3.97
500
$3.87
1,000
$3.76
2,500
$3.71
5,000
$3.65
7,500 +
$3.60
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
