1715734

Phoenix Contact

PCB terminal block - nominal current: 17.5 A - rated voltage (III/2): 400 V - nominal cross section: 1.5 mm² - pitch: 5.08 mm - number of positions: 3 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connection direction: 0 ° - color: green - Pin layout: Linear pinning - Solder pin [P]: 3.5 mm. The article can be aligned to create different nos. of positions! ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1715734 is a PCB terminal block designed for efficient and secure electrical connections. With a nominal current of 17.5 A and a rated voltage of 400 V, it provides reliable performance in various applications. Featuring a nominal cross-section of 1.5 mm² and a pitch of 5.08 mm, this terminal block offers convenient and organized wiring. It is equipped with a screw connection with tension sleeve for easy installation and maintenance. Designed for wave soldering mounting, this terminal block ensures a solid and durable connection with the PCB. The conductor/PCB connection direction is 0 °, allowing for efficient routing of wires. The terminal block is colored green, providing easy identification and aesthetics. Its pin layout is linear, offering flexibility in creating different numbers of positions. With a solder pin of 3.5 mm, this terminal block ensures a stable and secure connection. Overall, the PHOENIX CONTACT part 1715734 is a reliable and versatile PCB terminal block that provides efficient and secure electrical connections.

Search Keywords: 1715734

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1715734
Alias/AKA:
MKDS-1-5/-3-5-08
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Type:
PC Terminal Block
Mounting:
Through Hole
Gender:
N/A
Termination Method:
Solder
Pitch:
5.08 mm
Number of Circuits:
3
Maximum Voltage Rating:
400 V
Maximum Current Rating:
17.5 A
Wire Size:
14-26 AWG
Operating Temperature:
N/A

IN STOCK: 1,318

Can Ship immediately

Manufacturer Stock: 1,776   can ship 5/4/26

Minimum Order Quantity: 10

Factory Lead-Time 10 Weeks can ship 7/1/26

Qty
Unit Price
10
$1.80
100
$1.34
250
$1.28
500
$1.27
1,000 +
$1.26
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

1702048

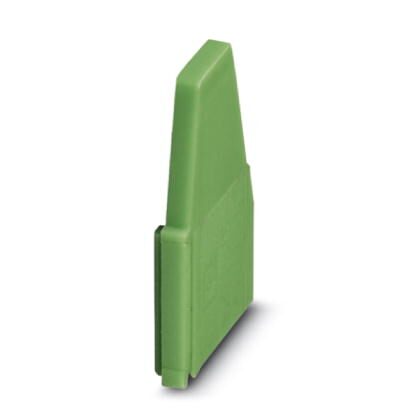

Pitch spacer - for adjusting the pitches between MKDS and GMKDS terminal blocks in mixed r ...
