1713223 by phoenix contact

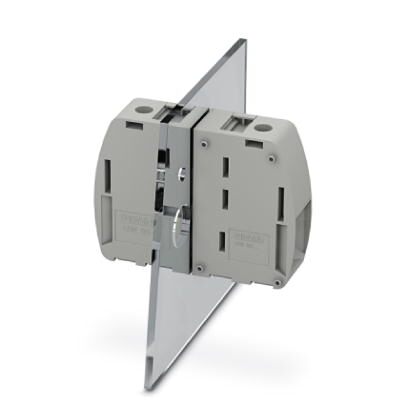

Image is representational - see mfr. specs

1713223

Phoenix Contact

A panel feed-through terminal block with a screw connection, designed for a maximum load current of 232 A and conductor cross sections from 35 mm² to 95 mm². ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1713223 is a panel feed-through terminal block designed to facilitate high-current connections through a panel. It utilizes a universal screw connection with an M8 thread and supports a wide conductor cross-section range from 35 mm² to 95 mm² (AWG 4 to 2/0). This terminal block is rated for a maximum load current of 232 A and a nominal voltage of up to 1000 V, with a rated surge voltage of 8 kV. Constructed from gray polyamide (PA) with a UL 94 V0 flammability rating, it ensures robust and safe operation. The block is designed for installation in panels with a thickness ranging from 1 mm to 6 mm, making it versatile for various industrial control cabinets and power distribution systems.

Search Keywords: 1713223

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1713223
Alias/AKA:
UW-95/S
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10

IN STOCK: 0

On Order: 20   can ship 5/4/26

Factory Lead-Time 9 Weeks

Qty
Unit Price
1
$91.57
5
$90.67
10
$66.93
30
$60.07
50
$57.76
100
$55.22
250 +
$55.08
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
