1711738

PCB terminal block - nominal current: 24 A - rated voltage (III/2): 400 V - nominal cross section: 2.5 mm² - pitch: 5.08 mm - number of positions: 3 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connection direction: 0 ° - color: green - Pin layout: Linear pinning - Solder pin [P]: 5 mm. The article can be aligned to create different nos. of positions! ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The PHOENIX CONTACT part 1711738 is a PCB terminal block ideal for various electrical applications. With a nominal current of 24 A and a rated voltage of 400 V, it ensures safe and reliable connections. The terminal block has a convenient pitch of 5.08 mm and a nominal cross-section of 2.5 mm², making it suitable for use with a variety of wire sizes. Featuring a screw connection with a tension sleeve, this terminal block ensures secure and durable connections. It can be easily mounted using wave soldering. The conductor/PCB connection direction is 0°, making it versatile for different orientations in your PCB design. The terminal block is colored green, providing easy identification and organization. It has a linear pinning pin layout, and the solder pin has a length of 5 mm. Additionally, this article can be easily aligned to create different numbers of positions, providing flexibility in your PCB design.

Search Keywords: 1711738

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1711738
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
PC Terminal Block
Mounting:
Through Hole
Gender:
N/A
Termination Method:
Solder
Pitch:
5.08 mm
Number of Circuits:
3
Maximum Voltage Rating:
400 V
Maximum Current Rating:
24 A
Wire Size:
12-24 AWG
Operating Temperature:
N/A

FREQUENTLY ASKED QUESTIONS

Is 1711738 RoHS compliant?

Yes, 1711738 is RoHS compliant.

What is the lead time for 1711738?

The standard lead time for 1711738 is approximately 15 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 574

Can Ship immediately

On Order: 1,000   can ship 11/18/26

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
100
$2.22
300
$2.18
500
$2.17
1,000
$2.16
2,500
$2.15
5,000
$2.14
7,500
$2.13
10,000 +
$2.12
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

1733169

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1733172

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

0805412

Marker card - Card - white - unlabeled - can be labeled with: Marker pen - mounting type: ...

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

1205053

Actuation tool - for ST terminal blocks - insulated - also suitable for use as a bladed sc ...

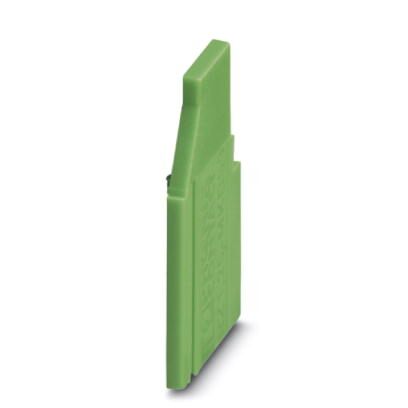

1703047

Pitch spacer - for adjusting the pitches between MKDS and GMKDS terminal blocks in mixed r ...

Show 4 More
