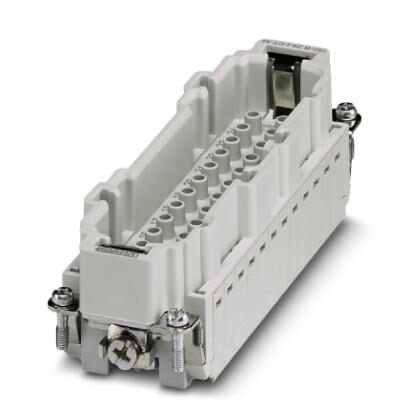

Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

1648348

HEAVYCON female insert - B24 series - 24-pos. - for crimp contacts

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

HEAVYCON female insert - B24 series - 24-pos. - for crimp contacts

Search Keywords: 1648348

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1648348
Alias/AKA:
HC-B-24-I-CT-F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Rectangular
Mounting:
Panel Mount
Body Orientation:
Straight
Gender:
PL
Pitch:
N/A
Termination Method:
Crimp
Number of Contacts:
24
Maximum Voltage Rating:
500 V
Maximum Current Rating:
16 A
Operating Temperature:
-40 to 125 °C

FREQUENTLY ASKED QUESTIONS

Is 1648348 RoHS compliant?

Yes, 1648348 is RoHS compliant.

What is the lead time for 1648348?

The standard lead time for 1648348 is approximately 18 days. In-stock quantities ship from Master Electronics.

IN STOCK: 0

On Order: 30   can ship 12/16/26

Minimum Order Quantity: 2

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
2
$19.43
10 +
$18.46
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

HC-SMR-B24

HEAVYCON connector assembly frame, for contact inserts of type B24

HC-CB

Coding pin - prevents mismating of up to six connectors with an identical number of positi ...

HC-CST

Coding peg for coding up to 16 connectors

HC-B-24-ANDOCK

Docking frame for racks - for contact inserts of B24 type - with four M5 flat headed screw ...

HC-B-PES

PE screw - for contact inserts HC-B / HC-BB / HC-DD / HC-D40 / HC-D64

HC-B-ZG

Strain relief clamps contact inserts of series: B- - BB- - D 40 - D 64 - DD and HV - strai ...

HC-B-3PE

PE multiplier - for three PE connections - for HC-B (besides HC-B..E..ZZ) / HC-BB / HC-DD ...

HC-B-ZS

Strain relief clamps contact inserts of series: B- - BB- - D 40 - D 64 - DD and HV - later ...

HC-CBU

Coding socket for coding up to 16 connectors

CP-HC

Coding profile - 4 coding profiles per strip - for insertion in coding keyways
