1543236

Phoenix Contact

Bus system connector - Ethernet CAT5 (1 Gbps) - 8-position - shielded - Plug straight M12 - A-coded - Insulation displacement connection - knurl material: Zinc die-cast - nickel-plated - external cable diameter 4 mm ... 8 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1543236 is an 8-position, straight plug, M12 bus system connector. This A-coded connector is categorized as Ethernet CAT5, 1 Gbps and features 360° shielding for reliable signal transmission in environments with electromagnetic interference. Connection method is by insulation displacement which allows connection without stripping any single wire. Contact material is made of Copper Tin in bright alloy/white bronze finish while grip body and knurl material is nickel-plated zinc die-cast. The product has an external cable diameter of 4mm to 8mm. Conductor cross section is 22 to 26 AWG.

Search Keywords: 1543236

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1543236
Alias/AKA:
SACC-M12MS-8Q-SH
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Body Orientation:
Straight

IN STOCK: 1

Can Ship immediately

Manufacturer Stock: 271   can ship 5/4/26

On Order: 40   can ship 5/7/26

Factory Lead-Time 5 Weeks can ship 5/27/26

Qty
Unit Price
1
$50.32
5 +
$47.80
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Accessories

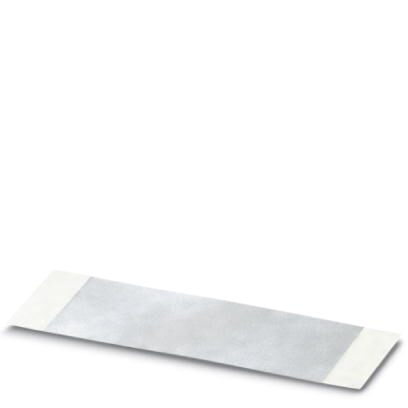

ALU-SB

Shielding foil - for fixing the braided shield of shielded cables. Length: 4 cm - width: 1 ...

TSD-08-SAC

Torque screw driver with preset torque of 0.8 Nm - with 4 mm hexagon for accommodating SAC ...

PROT-M12-FS-PA-CHAIN

M12 sealing cap made of plastic with fixing band - for sensor cables - for free M12 plugs

TSD-04-SAC

Torque screwdriver - with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connect ...

WIREFOX-D-40

Stripping tool - for stripping cables of 4.5 mm €‘ 40 mm€‘˜ - insulation thickness of up t ...

TSD-M-SAC-BIT-ADAPTER

Adapter bit for TSD-M...torque tools - E6.3-1/4" drive with 4 mm hexagon to accommodate SA ...

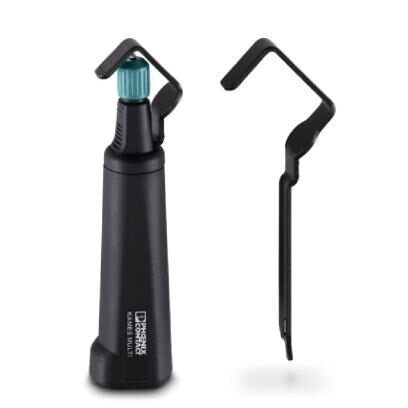

VS-CABLE-STRIP-VARIO

Stripping tool, for the multi-level stripping of shielded cables

SACC-BIT-M12-D20

Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm - for 4 mm h ...

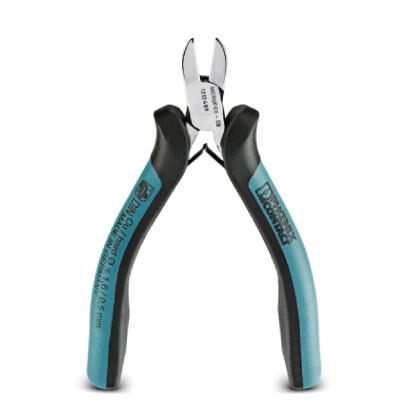

MICROFOX-SB

Electronic diagonal cutter - round head - without chamfer - with opening spring - mirror-p ...

Show 7 More
