1417296

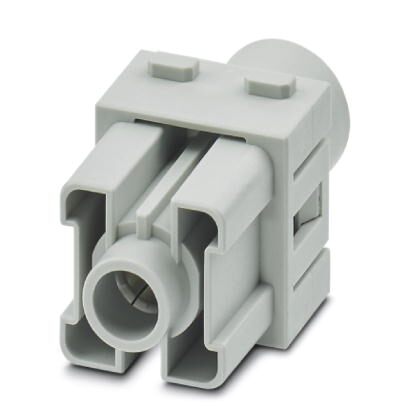

The 1417296 is a 2-position HEAVYCON socket contact insert module with an axial screw connection, rated for up to 70 A and 1000 V. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 1417296 is a HEAVYCON contact insert module featuring 2 socket positions with an axial screw connection. It is engineered to handle a rated current of 70 A and a rated voltage of 1000 V (Overvoltage Category III), with a surge voltage rating of 8 kV. The module accepts conductor cross-sections from 6 mm² to 25 mm² (AWG 8-6) and is constructed with silver-plated copper alloy contacts and a polycarbonate carrier. It ensures durability with at least 500 insertion/withdrawal cycles and operates reliably in ambient temperatures from -40 °C to 125 °C. This module is designed for use in HEAVYCON HC-B6 to B48 housings for robust power connections in industrial environments.

Search Keywords: 1417296

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1417296
Alias/AKA:
HC-M-02-AT-F-16
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536698000
COO:
PL
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2
Type:
HEAVYCON Contact Insert Module
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Pitch:
N/A
Termination Method:
N/A
Number of Contacts:
2
Maximum Voltage Rating:
1000 V
Maximum Current Rating:
70 A
Operating Temperature:
-40 to 125 °C

FREQUENTLY ASKED QUESTIONS

Is 1417296 RoHS compliant?

Yes, 1417296 is RoHS compliant.

What is the lead time for 1417296?

The standard lead time for 1417296 is approximately 5 days. In-stock quantities ship from Master Electronics.

IN STOCK: 132

Can Ship immediately

Manufacturer Stock: 594   can ship 8/28/26

Factory Lead-Time 5 Weeks can ship 9/17/26
