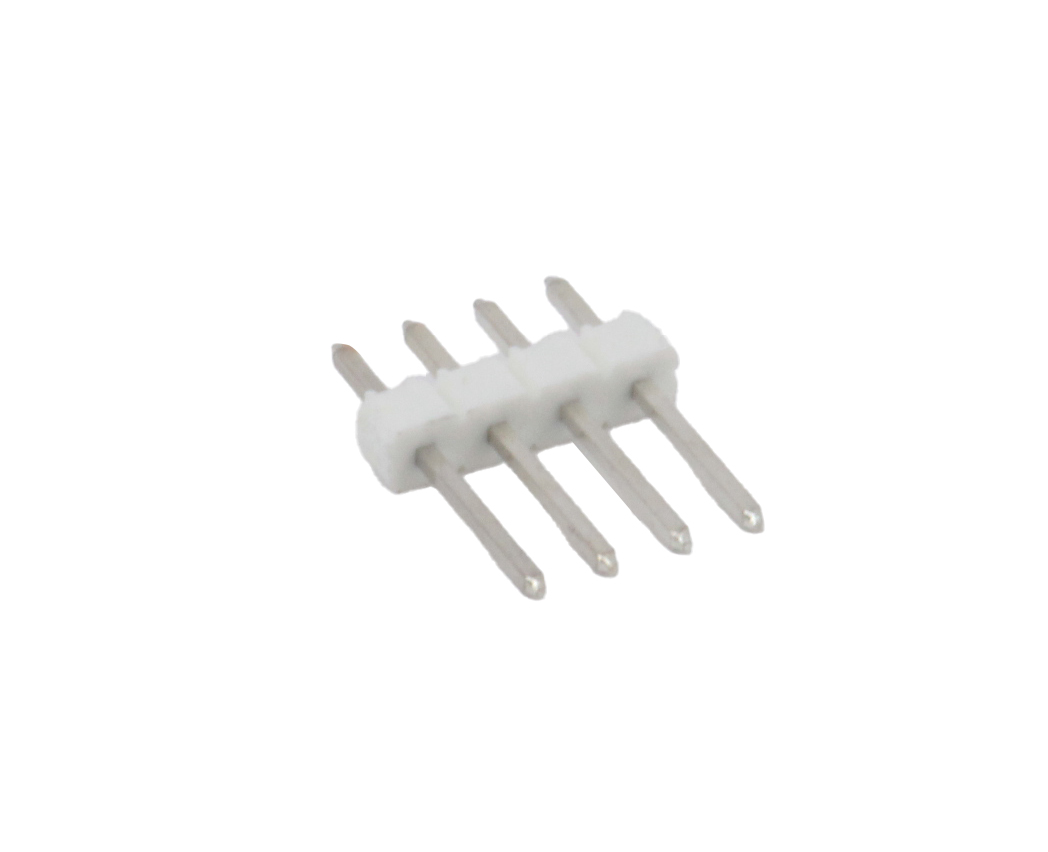

MFSS100-04-D by pancon connectors
Image is representational - see mfr. specs

MFSS100-04-D

Pancon Connectors

Header - 4 Circuits - .100" (2.54 mm) Pitch - Straight Pins - Different Platings. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MFSS100-04-D_E is a straight .100" (2.54 mm) pitch header connector designed for printed circuit board interconnection applications. This 4-circuit variant features a standard straight mounting orientation with 0.025" (0.64 mm) contact spacing and 0.100" (2.54 mm) pitch between rows. The connector is part of the Mas-Con Series MF/ML/MP .100" Headers family, which offers configurations from 2 to 36 circuits. The straight MFSS design provides reliable, cost-effective interconnection for general-purpose PCB applications including data acquisition, signal distribution, and modular equipment interfaces.

Search Keywords: MFSS10004D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Pancon Connectors
Part No:
MFSS100-04-D
Alias/AKA:
MFSS100-04-D_E
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8537109150
COO:
SI
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
500

IN STOCK: 8,633

Can Ship immediately

Minimum Order Quantity: 500

Multiple: 500

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
500
$0.1460
2,500
$0.1150
5,000
$0.1000
7,500
$0.0986
25,000
$0.0833
50,000
$0.0800
100,000
$0.0798
150,000 +
$0.0796
Suppliers Standard Package
