DPH-103-R by panasonic / sunx
Image is representational - see manufacturer specifications
PANASONIC / SUNX Authorized Distributor

DPH-103-R

The DPH-103-R is a head-separated vacuum pressure sensor head for measuring gauge pressure in air and non-corrosive gases. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The DPH-103-R is a head-separated vacuum pressure sensor head designed to measure gauge pressure within a rated range of 0 to –101.0 kPa. It operates on a 12 to 24 V DC supply and is suitable for use with air and other non-corrosive gases, featuring a pressure withstandability of 500 kPa. This model is equipped with a flexible, oil-resistant cabtyre cable for durable and versatile installations. The sensor is constructed with a stainless steel (SUS303) pressure port and a silicon diaphragm pressure element. Designed for industrial environments, it functions reliably within an ambient temperature range of 0 to +50 °C.

Search Keywords: DPH103R

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
PANASONIC / SUNX
Part No:
DPH-103-R
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
902620190
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Media:
Air,Gas
Output Voltage:
1 to 5 V
Mounting:
Panel
Operating Temperature:
0 to 50 °C
Dimension:
28.2 x 13.2 x 23 mm
Device Pressure Type:
Vacuum Gage
Operating Pressure Range:
0 to 101 kPa
Accuracy:
±0.5 %
Typical Operating Supply Voltage:
12 to 24 V
Response Time:
Selectable
Electrical Termination:
Connector

FREQUENTLY ASKED QUESTIONS

Is DPH-103-R RoHS compliant?

Yes, DPH-103-R is RoHS compliant.

What is the lead time for DPH-103-R?

The standard lead time for DPH-103-R is approximately 21 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 0

On Order: 10   can ship 11/27/26

Factory Lead-Time 21 Weeks

Price (USD)

Qty
Unit Price
1
$93.41
5
$92.48
10
$91.80
20
$91.36
50
$91.13
100 +
$90.90
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

CN-72-C2

QD CONNECTOR WITH 2 M SUB CABLE

CN-72-C5

QD CONNECTOR WITH 5 M SUB

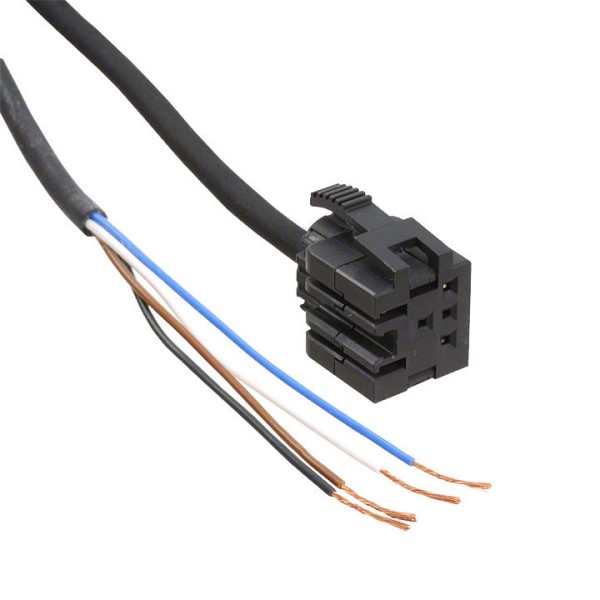

CN-74-C1

Cordset; QD Connector With 1m Main Cable

CN-74-C2

Cable Assembly Power 2m Power 4 POS F

CN-66A

6-core Connector 5 connectors per box

CN-74-C5

Quick connection - main 4 core cable - 5m length - Panasonic / SunX (CN)

CN-66A-C2

6-core. 2M Cable for DPC Controller

CN-66A-C5

6-core. 5M Cable for DPC Controller

CN-72-C1

QD CONNECTOR WITH 1M SUB C

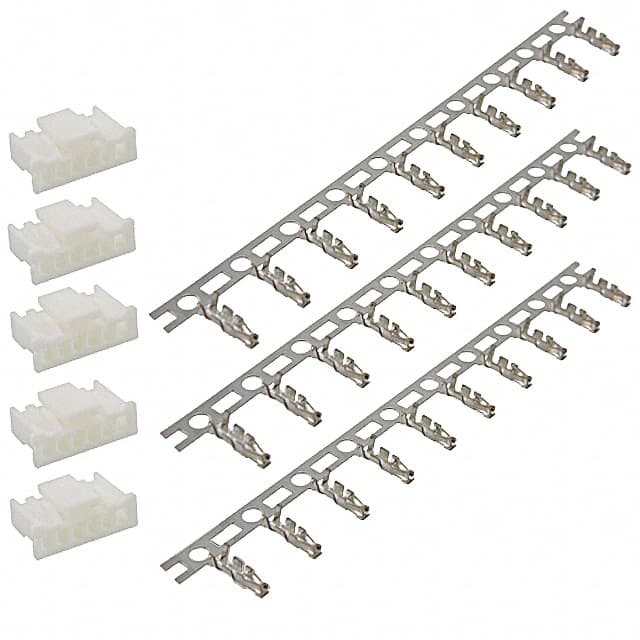

CN-EP1

Connector, Including 5 Pieces | Panasonic Industrial Automation CN-EP1

CN-EP2

Conn Hook Up Connector

MS-DIN-2

Amplifier - Mounting Bracket

MS-DP1-2

Mounting Bracket - Panel Mount - DP 100 Series Sensors

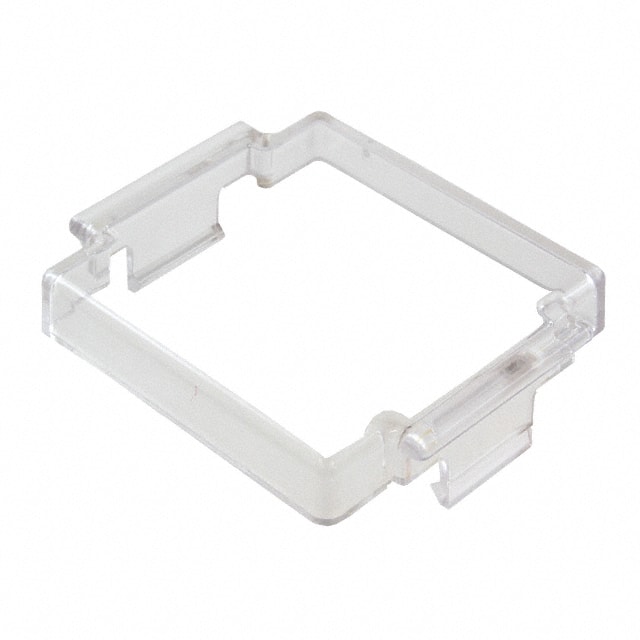

MS-DP1-3
