DP-111-E-P-J by panasonic / sunx
Image is representational - see manufacturer specifications
PANASONIC / SUNX Authorized Distributor

DP-111-E-P-J

Pressure Sensor -100kPa to 100kPa Gage 4-Pin ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

DP-111-E-P-J is a dual display digital pressure sensor for gas applications, part of the DP-100 series with M8 plug-in connector configuration for European markets. It features a rated pressure range of -100.0 to +100.0 kPa with a resolution of 1/2,000, displaying measurements in 0.1 kPa increments. The sensor offers high performance with a response time of 2.5 ms (variable up to 5,000 ms), temperature characteristics of ±0.5% F.S., repeatability of ±0.1% F.S., and hysteresis of ±0.2% F.S. It includes PNP open-collector transistor comparative output, G 1/8 male thread and M5 female thread pressure ports, and a dual 3-color display for easy operation. This sensor is ideal for applications such as suction monitoring and vacuum detection where precise low pressure measurement is required.

Search Keywords: DP111EPJ

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
PANASONIC / SUNX
Part No:
DP-111-E-P-J
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
902620190
COO:
TH
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Media:
Air,Gas
Output Voltage:
Display/PNP Open Collector
Mounting:
Screw
Operating Temperature:
-10 to 50 °C
Dimension:
47.5 x 30 x 30 mm
Device Pressure Type:
Gage
Operating Pressure Range:
-100 to 100 kPa
Accuracy:
±0.5 %
Typical Operating Supply Voltage:
12 to 24 V
Response Time:
Selectable
Electrical Termination:
Connector

FREQUENTLY ASKED QUESTIONS

Is DP-111-E-P-J RoHS compliant?

Yes, DP-111-E-P-J is RoHS compliant.

What is the lead time for DP-111-E-P-J?

The standard lead time for DP-111-E-P-J is approximately 12 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 15

Ships today, if you order in

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$150.17
5
$138.74
10
$134.36
20
$134.03
50
$133.69
100 +
$133.36
Log in for special pricing

Tools/3D Models

Product Guides

Product Changes

Accessories

MS-DP1-4

FOR DP-100, PANNEL MOUNTIN

MS-DP1-FN

Accommodate to Various Kinds of Mounting and Piping, NPT1/8 Female Thread

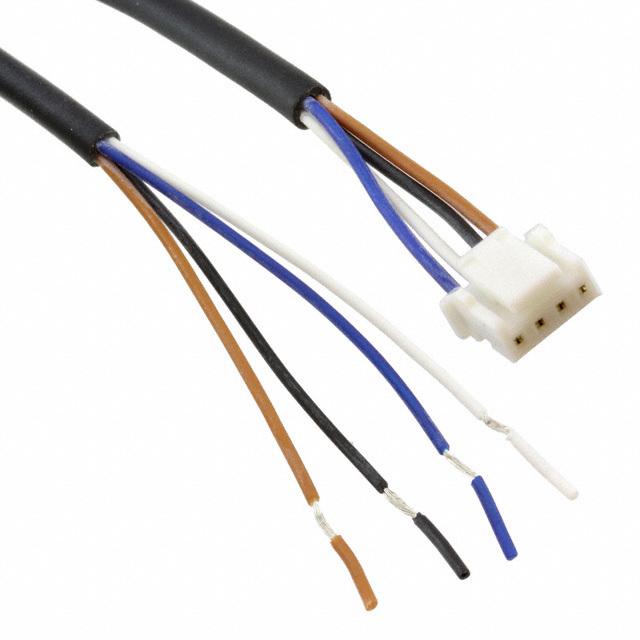

CN-14A-C1

Cable - Sensor - 1 Meter - Cable w/4 Pin Connector - for DP 100 - FX-10 - PM-64 - PM- ...

CN-14A-C5

Cable - Sensor - 5 Meter Cable With 4 Pin Connector.

CN-24A-C2

Cable Assembly 2m M8 Circular SKT

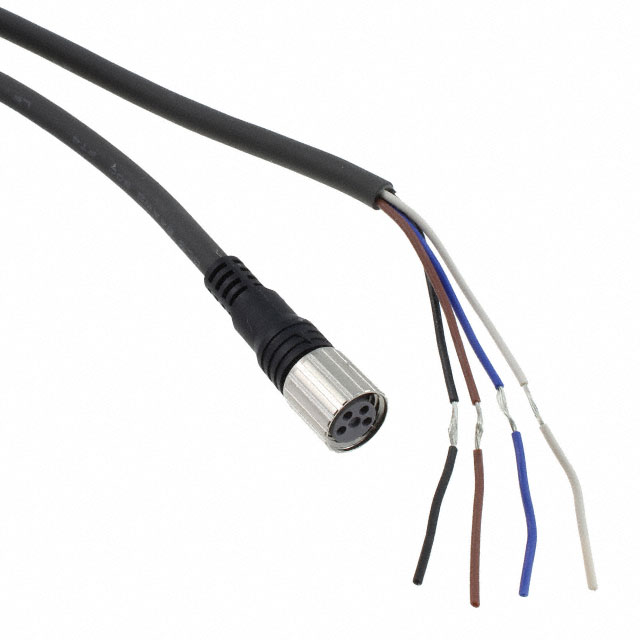

CN-24A-C5

Sensor Cable - DP100 Series - M8 Sensor - Straight - 4 Position - Receptacle - Free End ...

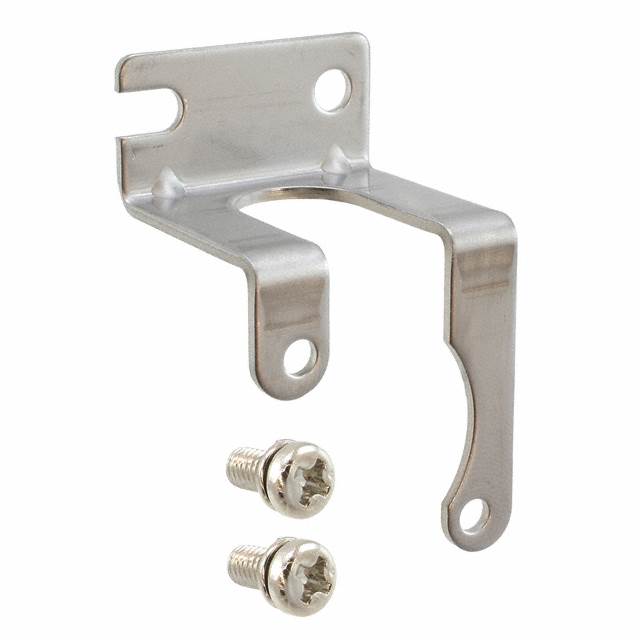

MS-DP1-5

DP100 - Mounting bracket (rear mounting)

MS-DP1-FE

FLAT ATTACHMENT FOR G 1/8
