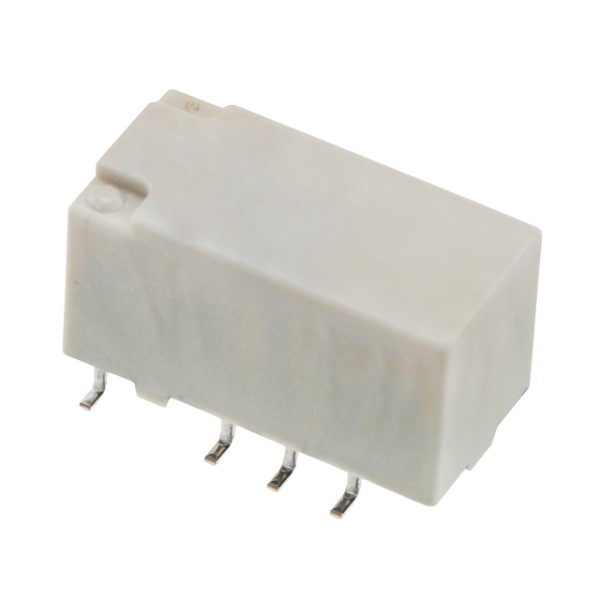

Image is representational - see mfr. specs

TX2SA-12V

Panasonic Electronic Components

The TX2SA-12V is a single side stable, surface-mount signal relay with a 2 Form C contact arrangement and a 12V DC nominal coil voltage. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TX2SA-12V is a compact, single side stable signal relay designed for surface-mount applications. It operates with a nominal coil voltage of 12V DC, drawing approximately 11.7 mA, and features a 2 Form C contact arrangement with a nominal switching capacity of 2A at 30V DC. This relay offers high reliability with a breakdown voltage of 2,000 Vrms between the contact and coil and an outstanding surge resistance of 2,500V. Due to its high sensitivity and compact size, it is ideal for applications in communications, measurement, security, medical equipment, and home appliances.

Search Keywords: TX2SA12V

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
TX2SA-12V
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410020
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
40
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
DPDT
Maximum Current Rating:
2 A
Mounting:
Surface Mount
Operating Temperature:
-40 to 85 °C
Dimension:
15 x 9.4 x 8.2 mm
Termination Style:
Gull Wing
Coil Current:
11.7 mA
Contact Form:
2 Form C
  Different packaging options available.  See Alternatives
