TQ2SA-5V by panasonic electronic components

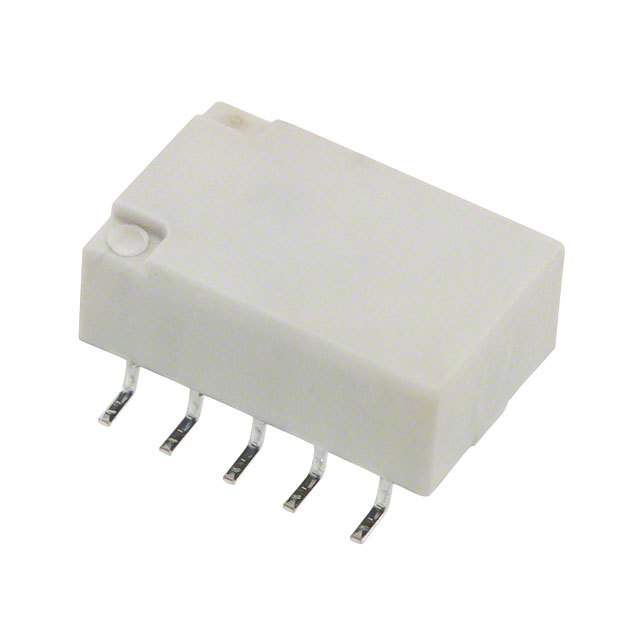

Image is representational - see manufacturer specifications
Panasonic Electronic Components Authorized Distributor

TQ2SA-5V

Signal Relay 5VDC 2A DPDT(14x11.5x5.6)mm SMD ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The PANASONIC EW/AROMAT part TQ2SA-5V is a compact and reliable signal relay designed for various electronic applications. With a low power consumption of only 5VDC, this relay offers exceptional performance and efficiency. It features a double-pole double-throw (DPDT) configuration, making it ideal for switching circuits and signal transmission. Measuring at just 14x11.5x5.6mm, this surface-mount device (SMD) is space-saving and easy to integrate into your projects. Whether used in telecommunications, automotive, or industrial control systems, this PANASONIC EW/AROMAT relay provides a reliable and efficient solution for signal switching.

Search Keywords: TQ2SA5V

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
TQ2SA-5V
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410020
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
5 V
Contact Arrangement:
DPDT
Maximum Current Rating:
2 A
Mounting:
Surface Mount
Operating Temperature:
-40 to 85 °C
Dimension:
14 x 11.5 x 5.6 mm
Termination Style:
Gull Wing
Coil Current:
28.1 mA
Contact Form:
2 Form C

FREQUENTLY ASKED QUESTIONS

What replaces TQ2SA-5V?

The recommended replacement for TQ2SA-5V is TQ2SA-5V-Z from Panasonic Electronic Components, available from Master Electronics.

Is TQ2SA-5V RoHS compliant?

Yes, TQ2SA-5V is RoHS compliant.

What is the lead time for TQ2SA-5V?

The standard lead time for TQ2SA-5V is approximately 20 days. In-stock quantities ship from Master Electronics.

  Different packaging options available.  See Alternatives
  Possible Replacement options available.  See Alternatives

IN STOCK: 6,000

Can Ship immediately

Minimum Order Quantity: 50

Multiple: 50

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
50
$1.13
100
$1.11
250
$1.08
500
$1.05
1,000
$1.04
2,500
$1.03
5,000
$1.02
7,500 +
$1.01
Supplier's Standard Package
