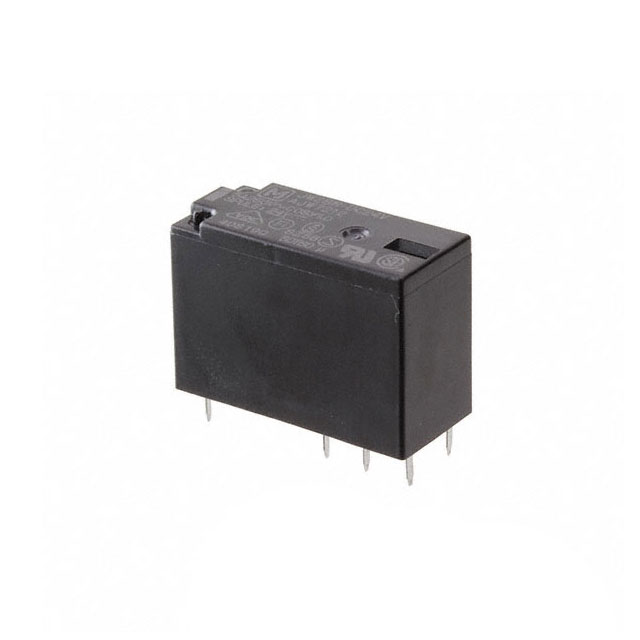

JS1-24V-F by panasonic electronic components

JS1-24V-F

Panasonic Electronic Components

Power Relay 24VDC 5DC/10AAC SPDT(22x16x16.4)mm THT ...

Datasheet
RoHS Compliant
BOX Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PANASONIC EW/AROMAT part JS1-24V-F is a compact and reliable power relay designed for a wide range of applications. With a voltage rating of 24VDC, it is capable of handling up to 5DC/10AAC of power. The relay features a single-pole double-throw (SPDT) configuration and is constructed using through-hole technology (THT) for easy installation. Measuring 22x16x16.4mm in size, it is compact yet durable, making it suitable for various industrial and commercial environments. Trust in the high-quality performance of the PANASONIC EW/AROMAT JS1-24V-F power relay for your electrical switching needs.

Search Keywords: JS124VF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JS1-24V-F
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BOX
Relay Construction:
Non-Latching10725
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
SPDT10703
Maximum Current Rating:
10
Mounting:
Through Hole10716
Termination Style:
PC Pin10727
Push to Test Button:
No10724
Led Indicator:
No10708
Operating Temperature:
-40 to 70 °C
Coil Resistance:
1.6 KOhm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 107,896

Can Ship immediately

Minimum Order: 100

Multiple: 100

Qty
Unit Price
100
$1.49
300
$1.21
500
$1.09
1,000
$0.99
2,500 +
$0.89
Suppliers Standard Package
Log in for special pricing
Please Note: Tariffs may apply for U.S. shipments

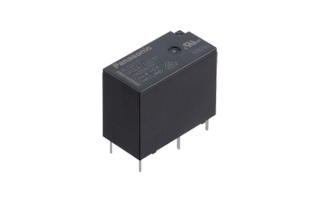

RECOMMENDED REPLACEMENT
ALQ124
ALQ124
VIEW PRODUCT
