JQ1AP-6V-F by panasonic electronic components

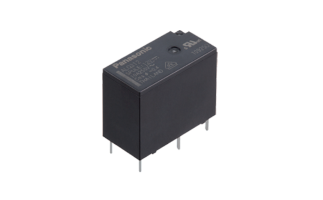

Image is representational - see mfr. specs

JQ1AP-6V-F

Panasonic Electronic Components

Electromechanical Relay 6VDC 180Ohm 10(NO)/3(NC)A SPST-NO (20x10x16)mm THT Power Relay

Datasheet
RoHS Compliant
Bulk Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

Electromechanical Relay 6VDC 180Ohm 10(NO)/3(NC)A SPST-NO (20x10x16)mm THT Power Relay

Search Keywords: JQ1AP6VF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JQ1AP-6V-F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Bulk
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
6 V
Contact Arrangement:
SPST-NO
Maximum Current Rating:
10(NO)/3(NC) A
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 70 °C
Coil Resistance:
180 Ohm
  Possible Replacement options available.  See Alternatives

IN STOCK: 0

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 143 Weeks

Qty
Unit Price
100
$2.06
300
$1.97
500
$1.91
1,000
$1.81
2,500
$1.76
5,000
$1.71
7,500
$1.69
10,000 +
$1.66
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
Possible Replacement
ALQ306
ALQ306
