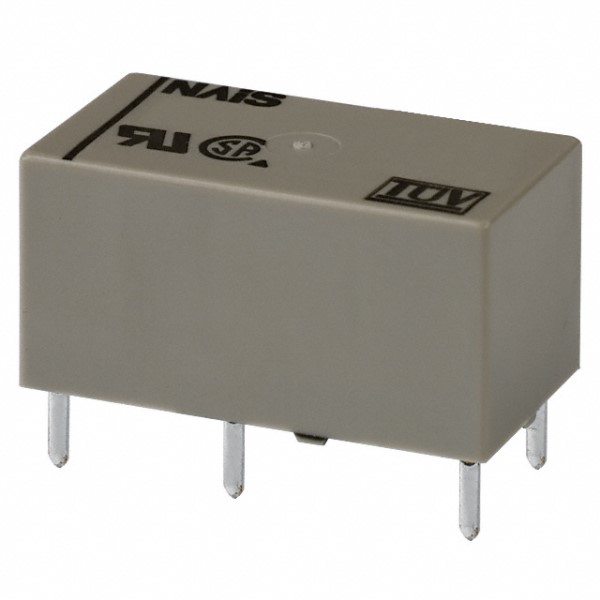

DSP1-DC5V-F by panasonic electronic components
Image is representational - see manufacturer specifications
Panasonic Electronic Components Authorized Distributor

DSP1-DC5V-F

Power Relay - SPST-NO - SPST-NC - 5 VDC - 5 A - DSP Series - Through Hole - Non Latching.

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The DSP1-DC5V-F is a small polarized Power Relay with 1-form-A, 1-form-B Au-flashed AgSnO₂ type contact. This DSP-series relay has single side stable operating function, standard polarity and high switching capability.

Search Keywords: DSP1DC5VF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
DSP1-DC5V-F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410020
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
5 V
Contact Arrangement:
SPST-NO,SPST-NC
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 65 °C
Coil Resistance:
83 Ohm

FREQUENTLY ASKED QUESTIONS

Is DSP1-DC5V-F RoHS compliant?

Yes, DSP1-DC5V-F is RoHS compliant.

What is the lead time for DSP1-DC5V-F?

The standard lead time for DSP1-DC5V-F is approximately 16 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 970

Can Ship immediately

On Order: 2,500   can ship 1/14/27

Minimum Order Quantity: 50

Multiple: 50

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
50
$3.27
100
$3.13
250
$2.96
500
$2.83
1,000
$2.69
2,500 +
$2.52
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request
