DS2E-S-DC24V by panasonic electronic components

DS2E-S-DC24V

Panasonic Electronic Components

Signal Relay 24VDC 3A DPDT(20x9.9x9.9)mm THT

Datasheet
RoHS Compliant
Tube Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

Signal Relay 24VDC 3A DPDT(20x9.9x9.9)mm THT

Search Keywords: DS2ESDC24V

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
DS2E-S-DC24V
RoHS:
Yes
HTS:
8536410020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Tube
Relay Construction:
Non-Latching12534
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT12514
Maximum Current Rating:
3 A
Mounting:
Through Hole12526
Termination Style:
PC Pin12536
Operating Temperature:
-40 to 70 °C
Coil Resistance:
2.88 KOhm
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

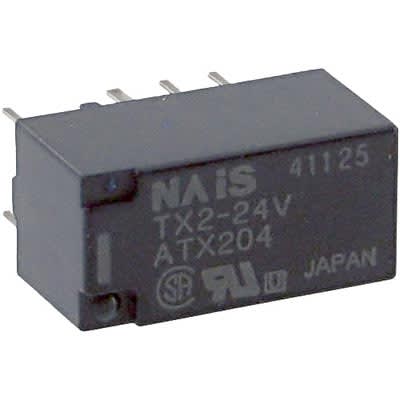

RECOMMENDED REPLACEMENT
TX2-24V
TX2-24V
VIEW PRODUCT
