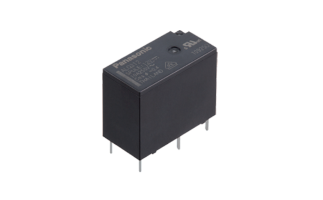

ALQ118 by panasonic electronic components
Image is representational - see mfr. specs

ALQ118

Panasonic Electronic Components

The ALQ118 is a sealed, 1 Form C power relay with a 10A contact rating and an 18V DC rated coil voltage. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ALQ118 is a compact power relay designed for switching applications in home appliances and industrial equipment. It features a 1 Form C contact arrangement with a Class B insulated coil rated for 18V DC and an operating power of 400 mW. This relay offers a high capacity of 10A, a surge withstand voltage of 8,000V between the contact and coil, and a high dielectric strength of 4,000Vrms. Housed in a small 10 x 20 x 16 mm sealed package, it operates reliably over an ambient temperature range of -40°C to +85°C. Its robust electrical characteristics and small footprint make it a versatile solution for power control circuits.

Search Keywords: ALQ118

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
ALQ118
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410020
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
18 V
Contact Arrangement:
SPDT
Maximum Current Rating:
10(NO)/3(NC) A
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 85 °C
Coil Resistance:
810 Ohm

IN STOCK: 1,000

Ships today, if you order in

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 16 Weeks

Qty
Unit Price
100
$2.53
200
$2.19
400
$2.05
800
$2.00
1,000 +
$1.91
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
