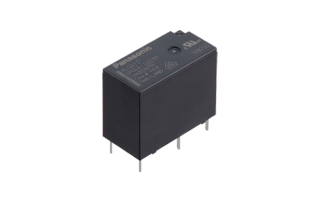

ALQ112 by panasonic electronic components
Image is representational - see mfr. specs

ALQ112

Panasonic Electronic Components

Power Relay 12VDC 5(NO)/1(NC)DC/10(NO)/3(NC)AAC SPDT(20x10x16)mm THT ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PANASONIC EW/AROMAT ALQ112 is a reliable and versatile power relay designed for various applications. It operates at a voltage of 12VDC and offers a configuration of 5 normally open (NO) and 1 normally closed (NC) DC contacts, as well as 10 normally open (NO) and 3 normally closed (NC) AC contacts. The relay is compact, measuring 20x10x16mm, and is suitable for through-hole mounting (THT). With its SPDT (Single Pole Double Throw) design, the ALQ112 provides excellent switching capabilities, making it an ideal choice for a wide range of electronic projects and systems.

Search Keywords: ALQ112

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
ALQ112
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Relay Construction:
Non-Latching10725
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPDT10703
Mounting:
Through Hole10716
Termination Style:
PC Pin10727
Push to Test Button:
No10724
Led Indicator:
No10708
Operating Temperature:
-40 to 85 °C
Coil Resistance:
360 Ohm
  Possible Replacement options available.  See Alternatives

IN STOCK: 2,000

Ships today, if you order in

On Order: 3,000   can ship 7/8/26
On Order: 3,000   can ship 7/15/26

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 16 Weeks

Qty
Unit Price
100
$0.675
300
$0.662
500
$0.645
1,000
$0.624
2,500
$0.623
5,000
$0.621
7,500
$0.620
10,000 +
$0.618
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
Older Equivalent
JS1-B-12V-F
JS1-B-12V-F
VIEW PRODUCT
